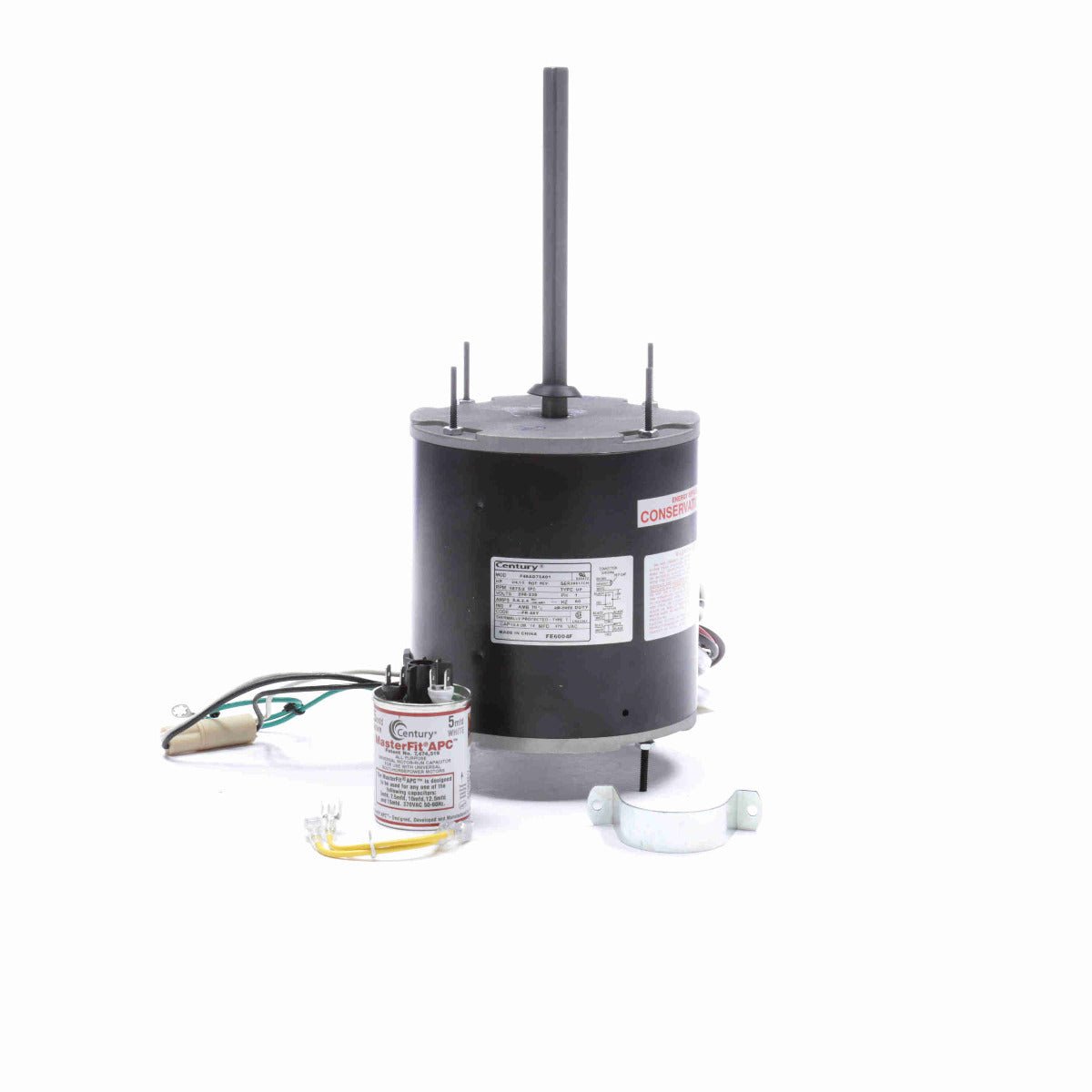

* Image is for reference only

FE6004F Century Motor 3/4-1/3HP 1075RPM 48Y ENCLOSED 208-230 Volt 1 Phase

SKU: FE6004F
$174.51
Sale $174.51
Description
  • MasterFit Pro - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 15or 12.5 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads with Quick Connect Terminals
  • Extended Studs Shaft End, Mounting Holes in Shell, Belly Band, 4.33BC Lead End End-Frame
Specifications

Nameplate Specifications

Phase: 1 Output HP: 3/4,1/3 Hp
Output KW: 0.56 kW Voltage: 208-230 V
Speed: 1075 rpm Service Factor: 1
Frame: 48 Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 70 °C
Frequency: 60 Hz Current: 5.6,2.4 A
Duty: Air Over Insulation Class: F
UL: Recognized CSA: Y
CE: N Number of Speeds: 2

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Motor Orientation: Any
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Double Flat
Overall Length: 13.37 in Frame Length: 5.37 in
Shaft Diameter: 0.500 in Shaft Extension: 6.5 in

General Specifications

UPC: 786674054739 Weight: 21.00 LB
Packaged Length: 15.50 IN Packaged Width: 6.50 IN
Packaged Height: 6.80 IN HTC: 8501.40.4040
Country of Origin: Mexico
