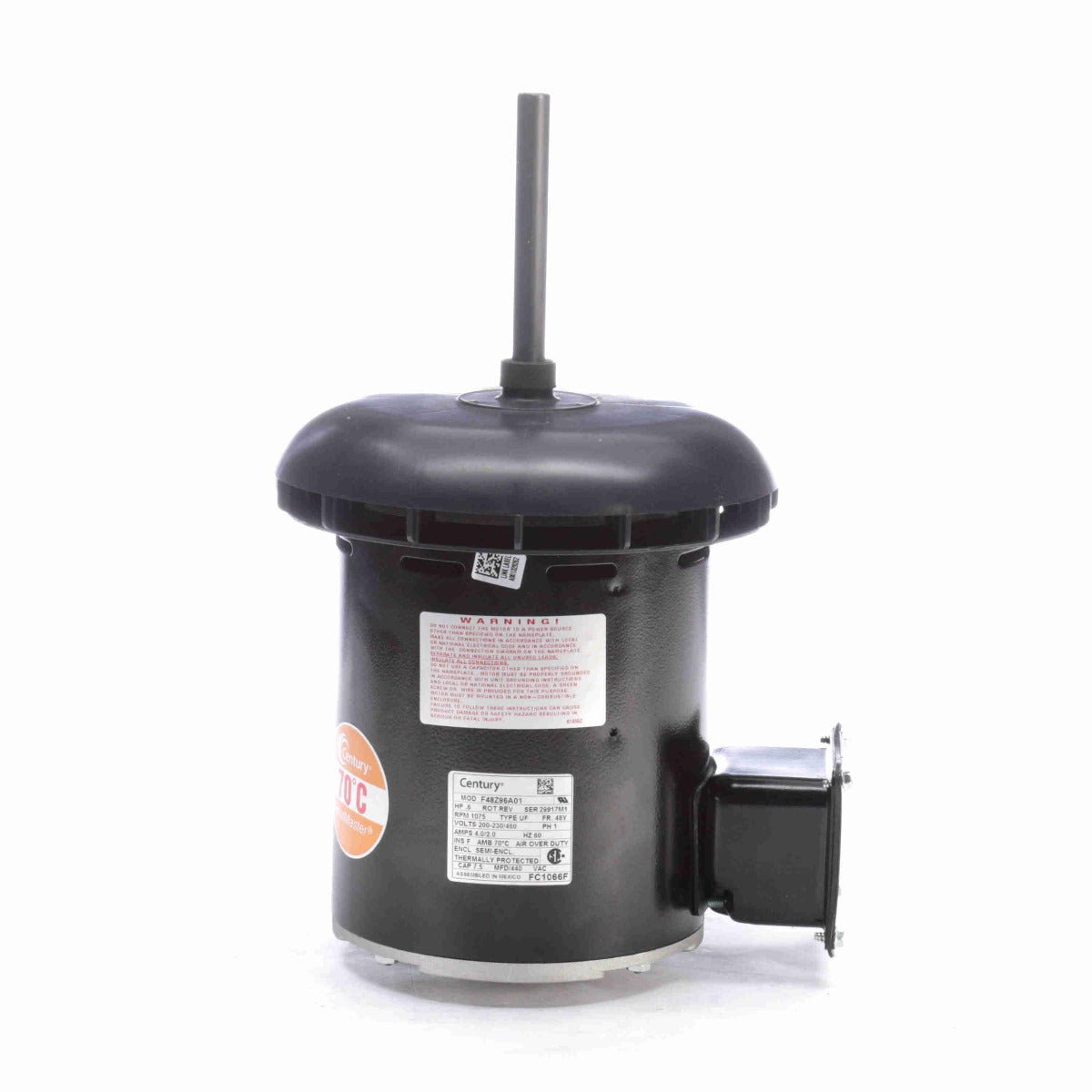

* Image is for reference only

FC1066F Century Motor 3/5HP 1075RPM 48 OAO 200-230/460 Volt 1 Phase

SKU: FC1066F
$337.84
Sale $337.84
Description
  • HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-440 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • Conduit Box
  • Belly Band, Vertical Shaft Up
Specifications

Nameplate Specifications

Phase: 1 Output HP: .6 Hp
Output KW: 0.45 kW Voltage: 200-230/460 V
Speed: 1075 rpm Service Factor: 1
Frame: 48Y Enclosure: Semi Enclosed
Thermal Protection: Automatic Ambient Temperature: 70 °C
Frequency: 60 Hz Current: 4.0/2.0 A
Duty: Air Over Insulation Class: F
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Round Belly Band Motor Orientation: Vertical Shaft Up
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Double Flat
Overall Length: 12.92 in Frame Length: 6.38 in
Shaft Diameter: 0.500 in Shaft Extension: 3.78 in

General Specifications

UPC: 786674020352 Weight: 18.00 LB
Packaged Length: 10.50 IN Packaged Width: 9.00 IN
Packaged Height: 15.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
