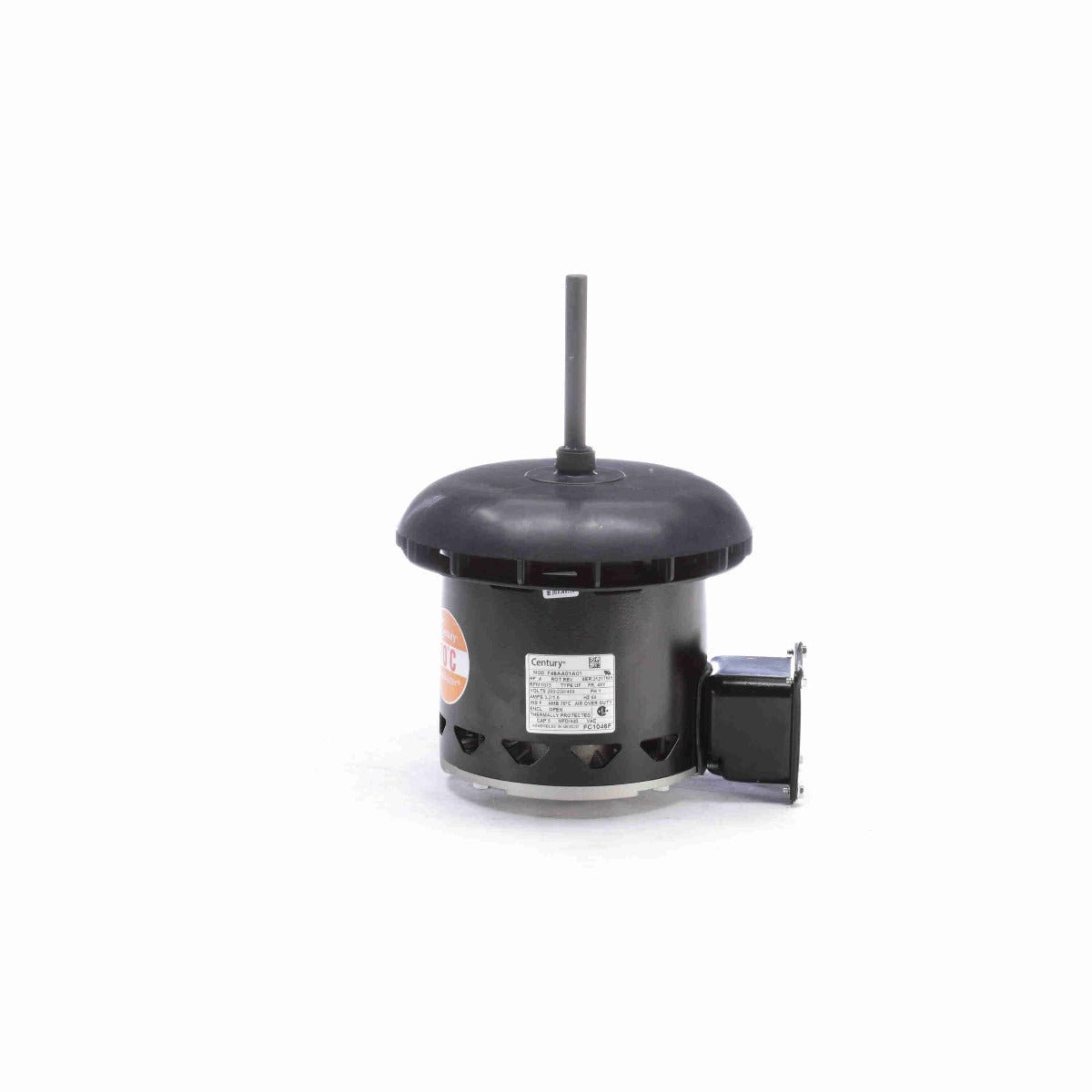

* Image is for reference only

FC1046F Century Motor 2/5HP 1075RPM 48 OAO 200-230/460 Volt 1 Phase

SKU: FC1046F
$289.70
Sale $289.70
Description
  • HeatMaster - Commercial Condenser Fan Motor - Fan Canopy
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-440 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class F Insulation, 70°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat, Supplied with 5/8" adapter and Key
  • Conduit Box
  • Belly Band, Vertical Shaft Up
Specifications

Nameplate Specifications

Phase: 1 Output HP: .4 Hp
Output KW: 0.30 kW Voltage: 200-230/460 V
Speed: 1075 rpm Service Factor: 1.0
Frame: 48Y Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 70 °C
Frequency: 60 Hz Current: 3.2/1.6 A
Duty: Air Over Insulation Class: F
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Round Belly Band Motor Orientation: Vertical Shaft Up
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Double Flat
Overall Length: 10.74 in Frame Length: 4.75 in
Shaft Diameter: 0.500 in Shaft Extension: 3.6 in

General Specifications

UPC: 786674020338 Weight: 15.00 LB
Packaged Length: 10.50 IN Packaged Width: 9.00 IN
Packaged Height: 15.00 IN HTC: 8501.40.4040
