DL1056 Century Motor

* Image is for reference only

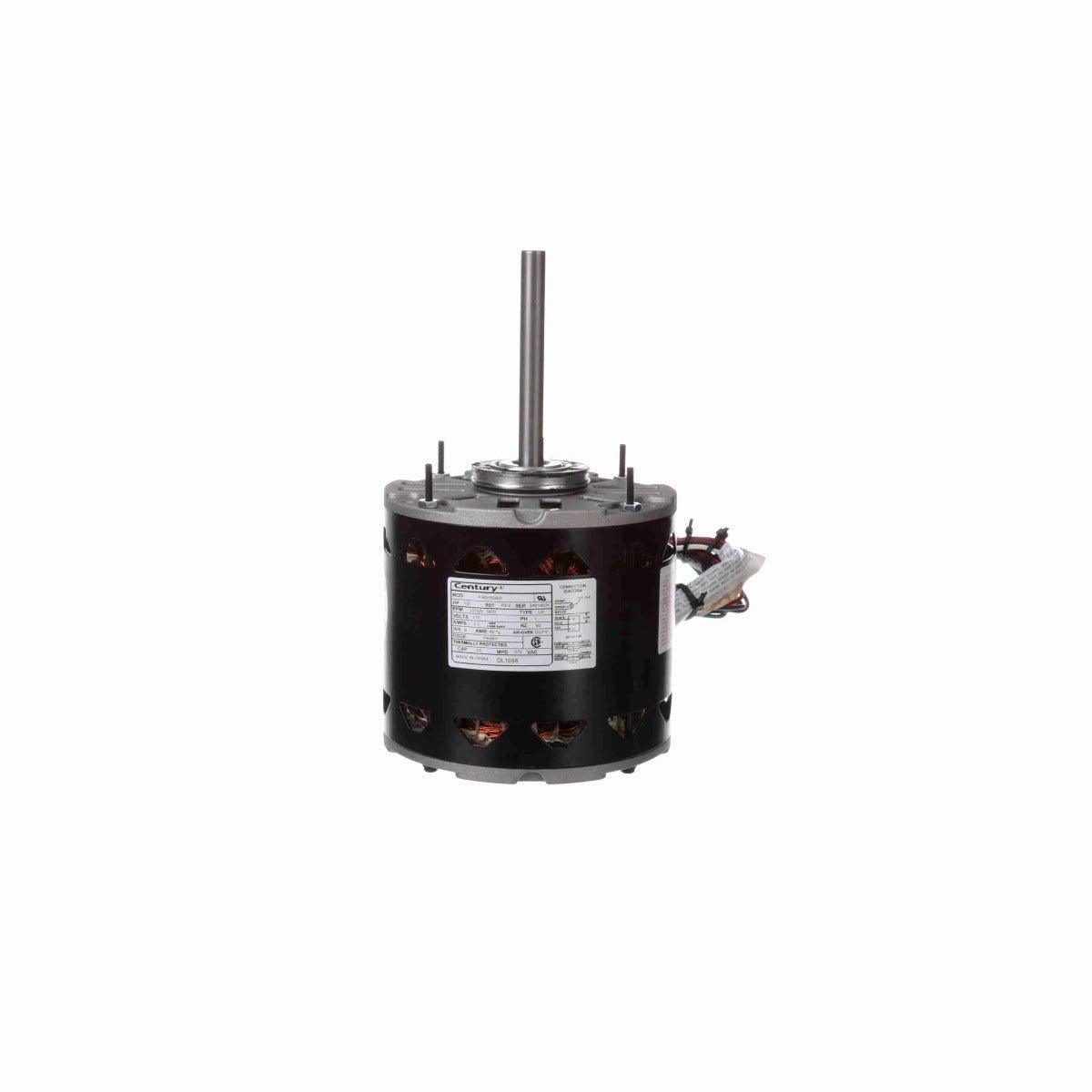

DL1056 Century Motor 1/2HP 1075RPM 48Y OPEN 115 Volt 1 Phase

SKU: DL1056

$136.46

~~$184.00~~ Sale $136.46

Description

Description

Fan Coils - Dual Wheel Blower Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40Â°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Flat
26" Leads
Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mount
