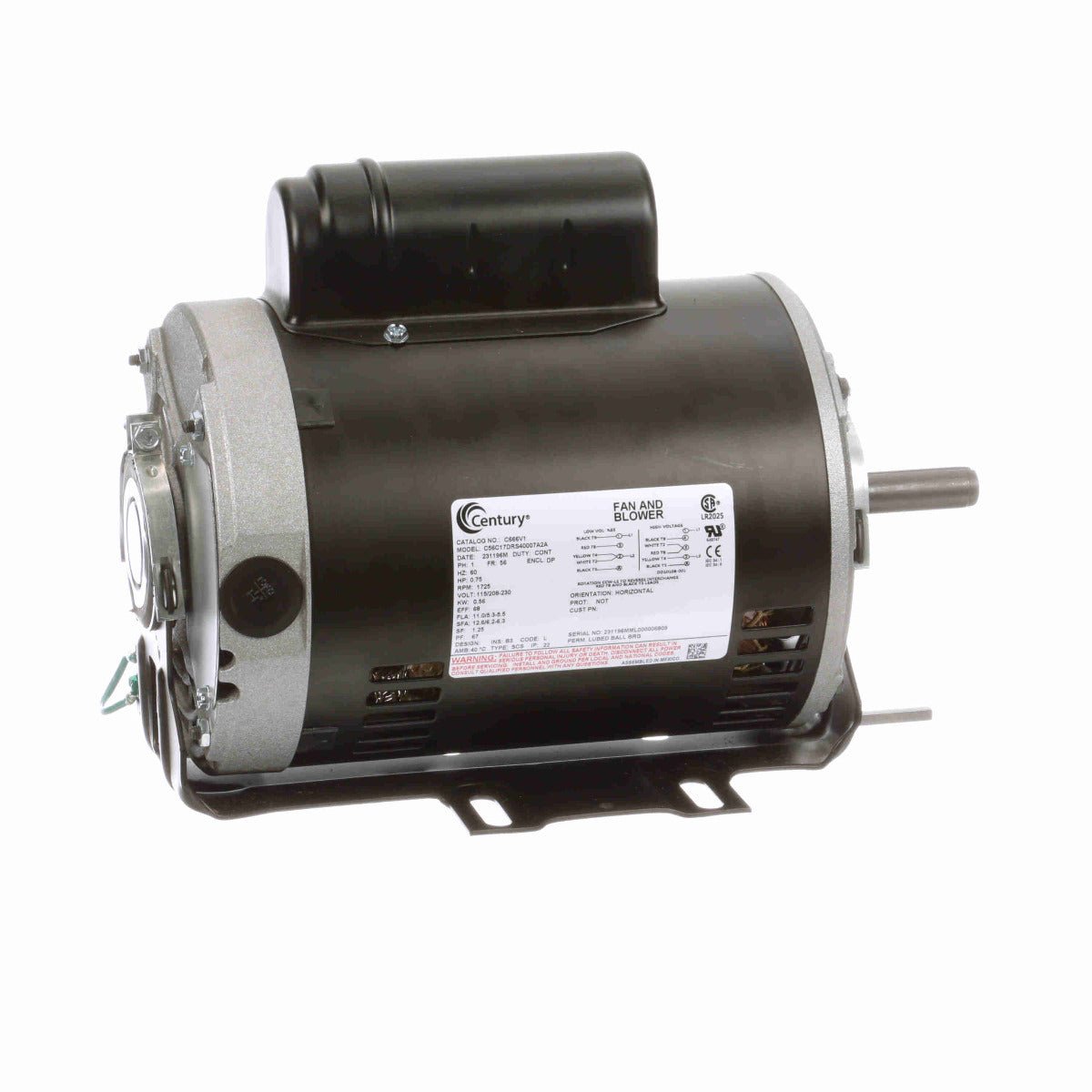

* Image is for reference only

C666V1 Century Motor 3/4HP 1725RPM J56 ODP 208-230/115 Volt 1 Phase

SKU: C666V1
$364.31
Sale $364.31
Description
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to  70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
  • This item replaces Marathon CG230
Specifications

Nameplate Specifications

Phase: 1 Output HP: 0.75 Hp
Output KW: 0.56 kW Voltage: 115/208-230 V
Speed: 1725 rpm Service Factor: 1.25
Frame: 56 Enclosure: Drip Proof
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 11.0/5.3-5.5 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: Y Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.16 in
Frame Length: 7.24 in Shaft Diameter: 0.625 in
Shaft Extension: 2.03 in

General Specifications

UPC: 786674074706 Weight: 28.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
