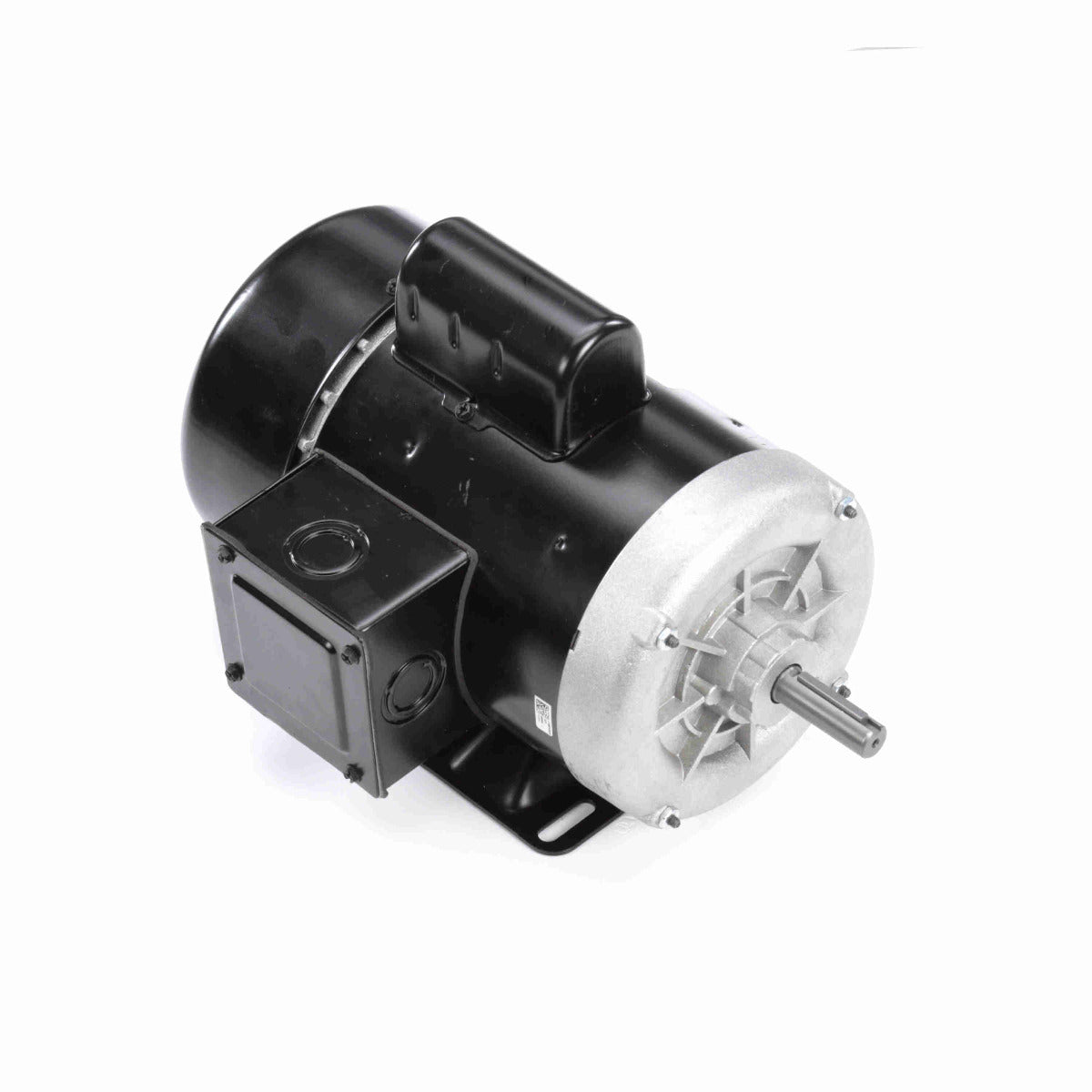

* Image is for reference only

C620 Century Motor 1HP 1725RPM L56 TEFC 208-230/115 Volt 1 Phase

SKU: C620
$426.00
Sale $426.00
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power. specifications
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Capacitor start design optimizes motor torque and efficiency performance.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.000 Hp
Output KW: 0.75 kW Voltage: 208-230/115 V
Speed: 1725 rpm Service Factor: 1.15
Frame: L56 Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 6.2-6.0/12.0 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 13.36 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in

General Specifications

UPC: 786674016416 Weight: 37.00 LB
Packaged Length: 17.00 IN Packaged Width: 11.00 IN
Packaged Height: 11.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
