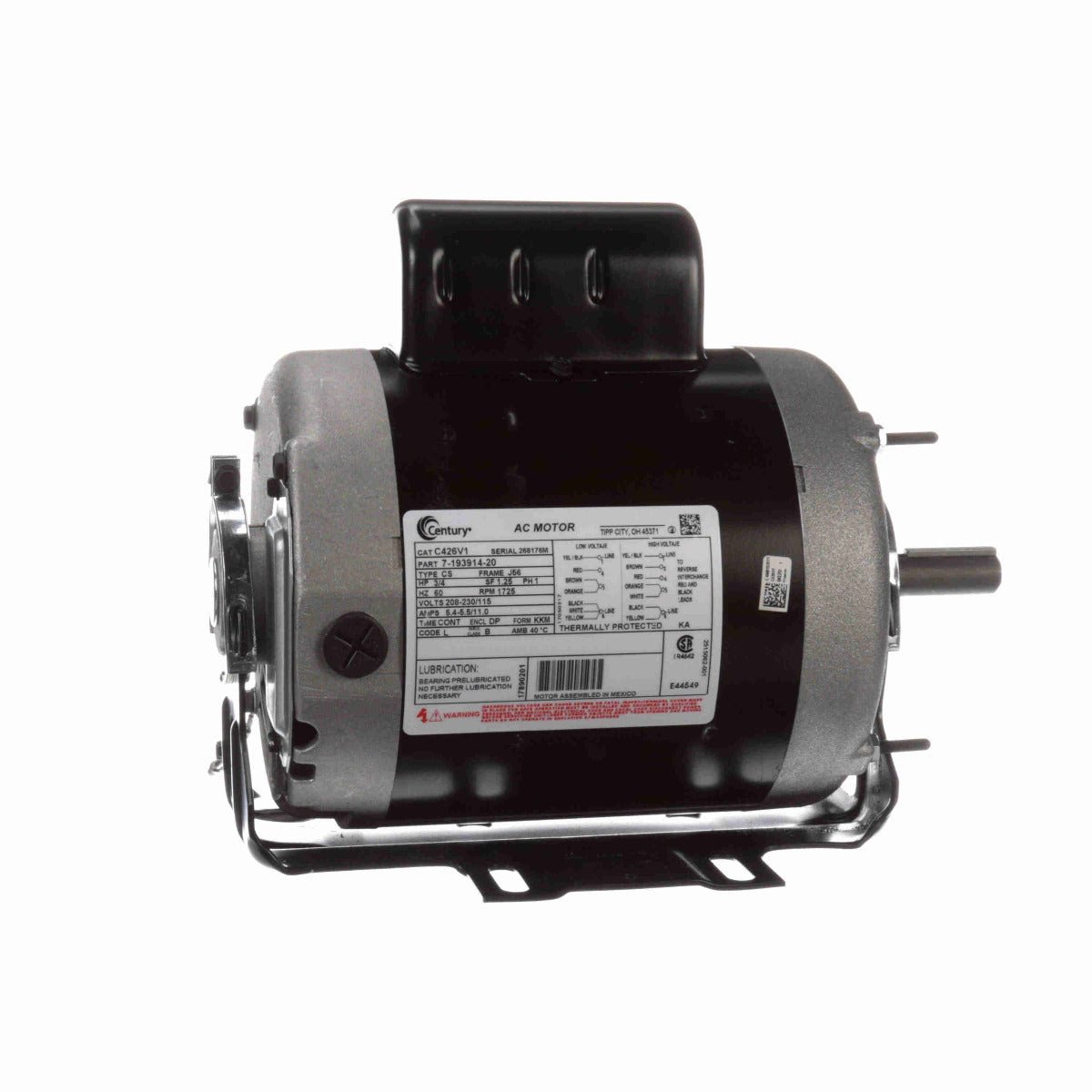

* Image is for reference only

C426V2 Century Motor 3/4HP 1725RPM J56 ODP 208-230/115 Volt 1 Phase

SKU: C426V2
$358.26
Sale $358.26
Description
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
  • Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 0.75 Hp
Output KW: 0.56 kW Voltage: 115/230 V
Speed: 1725 rpm Service Factor: 1.25
Frame: 56 Enclosure: Drip Proof
Thermal Protection: Thermally Protected Efficiency: 72 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 10.4/5.2 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.47 in
Frame Length: 7.15 in Shaft Diameter: 0.625 in
Shaft Extension: 1.96 in

General Specifications

UPC: 786674074560 Weight: 27.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 30.85 591.0 6.47 283.6 0 6.71 0.0 0.75
Break-Down 14.42 276.1 5.69 249.4 1,511 2.80 0.0 0.75
Pull-Up 30.77 589.5 6.21 272.3 154 6.69 0.0 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 % 175 %
Current (Amps) 4.04 4.08 4.30 4.68 5.22 5.61 5.89 6.71 7.70
Rated Output (KW) 0.13 0.29 0.44 0.60 0.79 0.90 0.98 1.19 1.43
Efficiency (%) 0.0 50.7 66.0 71.0 72.0 71.8 71.4 69.9 67.1
Power Factor (%) 14.4 30.6 44.3 56.4 66.0 70.5 73.1 77.9 81.5
Speed (RPM) 1,795 1,785 1,775 1,760 1,750 1,740 1,735 1,715 1,695
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 72.0 0.0 0.0
Torque (ft-lbs) 0.00 0.57 1.14 1.71 2.28 2.62 2.85 3.43 3.99
