Home » C245 Century Motor 1HP 1725RPM L56Y ODP 115/230 Volt 1 Phase
C245 Century Motor 1HP 1725RPM L56Y ODP 115/230 Volt 1 Phase - Square One Electric Motors & Pumps

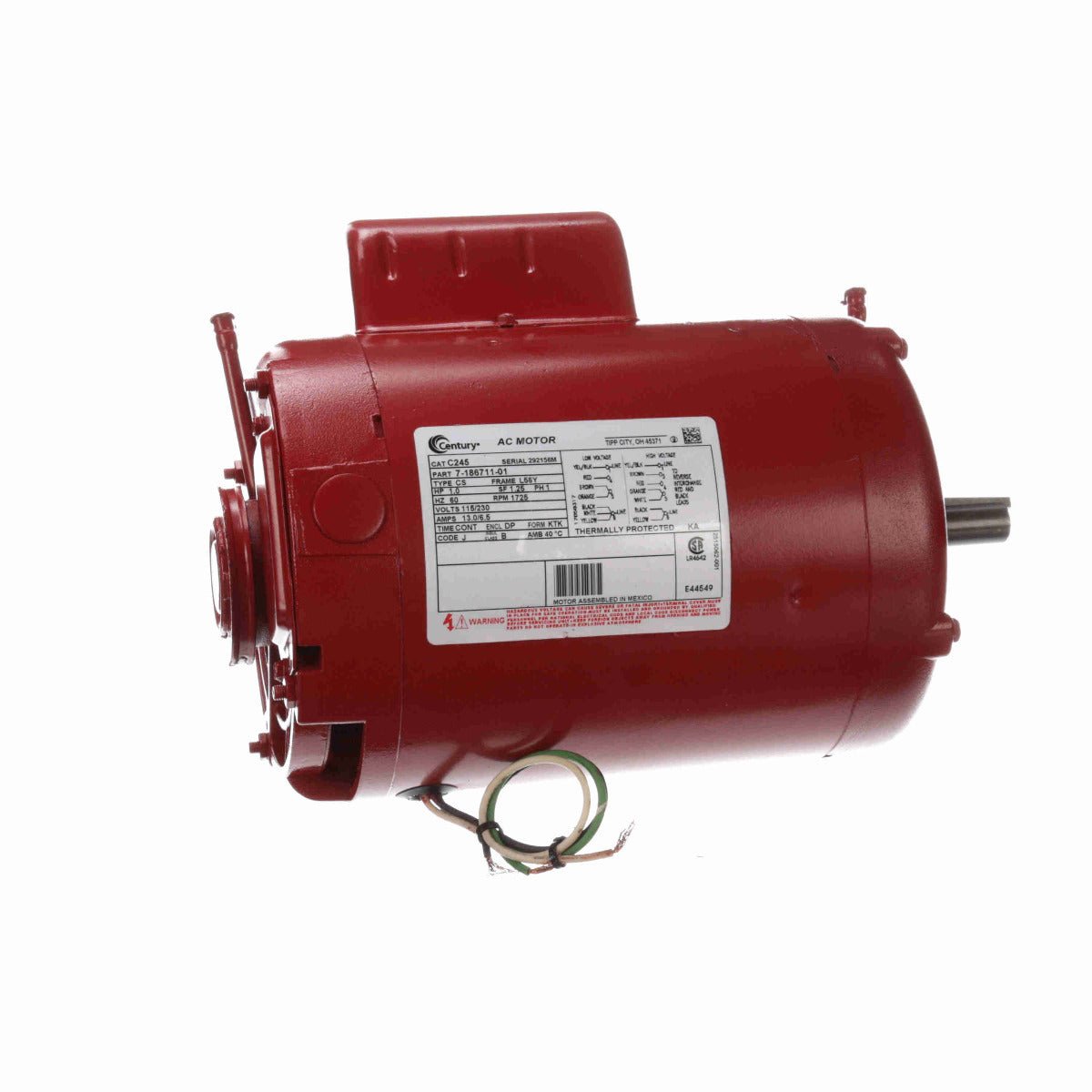

* Image is for reference only

C245 Century Motor 1HP 1725RPM L56Y ODP 115/230 Volt 1 Phase

SKU: C245
$0.00
Sale $0.00
Description
  • Automatic reset thermal protector
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.0 Hp
Output KW: 0.75 kW Voltage: 115/230 V
Speed: 1725 rpm Service Factor: 1.25
Frame: L56Y Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 13.0/6.5 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Clockwise
Mounting: Cushion Ring Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.62 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 1.37 in

General Specifications

UPC: 786674015556 Weight: 35.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
