Home » C218 Century Motor 3HP 1725RPM Y145T ODP 208-230 Volt 1 Phase
C218 Century Motor 3HP 1725RPM Y145T ODP 208 - 230 Volt 1 Phase - Square One Electric Motors & Pumps

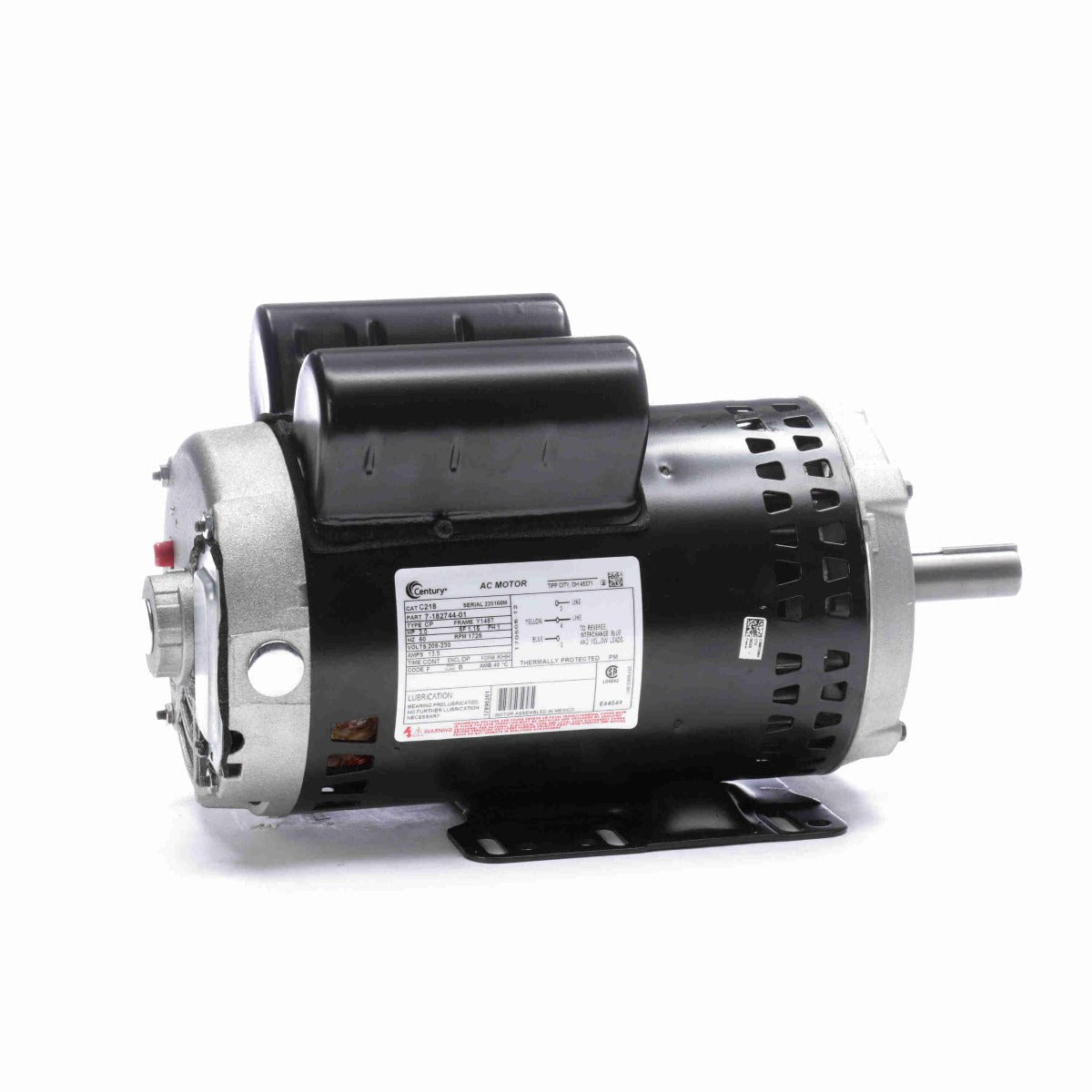

* Image is for reference only

C218 Century Motor 3HP 1725RPM Y145T ODP 208-230 Volt 1 Phase

SKU: C218
$524.39
Sale $524.39
Description
  • Thermal protection prevents dangerous overheating that causes motor failure.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Double-shielded bearings extend the service life of the motor.
  • High service factor rating (as noted).
Specifications

Nameplate Specifications

Phase: 1 Output HP: 3.0 Hp
Output KW: 2.2 kW Voltage: 208-230 V
Speed: 1725 rpm Service Factor: 1.15
Frame: Y145T Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 13.5 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 15.06 in
Frame Length: 9.25 in Shaft Diameter: 0.875 in
Shaft Extension: 2.31 in

General Specifications

UPC: 786674015402 Weight: 49.00 LB
Packaged Length: 19.00 IN Packaged Width: 10.00 IN
Packaged Height: 9.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
