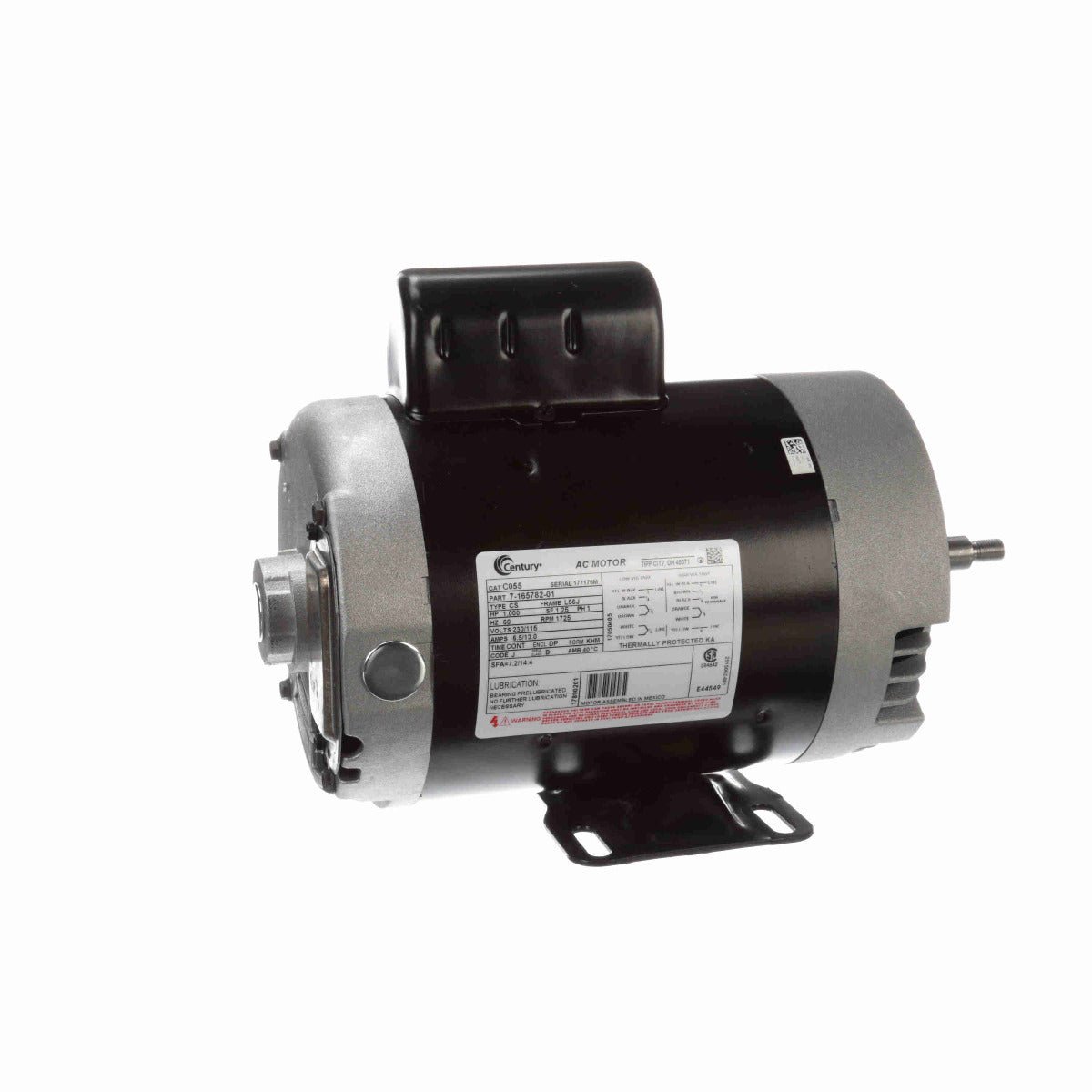

* Image is for reference only

C055V1 Century Motor 1HP 1725RPM L56J ODP 230/115 Volt 1 Phase

SKU: C055V1
$0.00
Sale $0.00
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Double sealed ball bearings mechanically locked on shaft end.
  • Continuous duty cycle design allows maximum operation at the rated power specifications.
  • Class F insulation(as noted) protects motor for a maximum temperature rating.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1 Hp
Output KW: 0.75 kW Voltage: 115/230 V
Speed: 1725 rpm Service Factor: 1.25
Frame: 56J Enclosure: Drip Proof
Thermal Protection: Thermally Protected Efficiency: 70 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 12/6 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 12.52 in
Frame Length: 8.15 in Shaft Diameter: 0.625 in
Shaft Extension: 2.57 in

General Specifications

UPC: 786674074430 Weight: 35.00 LB
Packaged Length: 13.00 IN Packaged Width: 10.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
