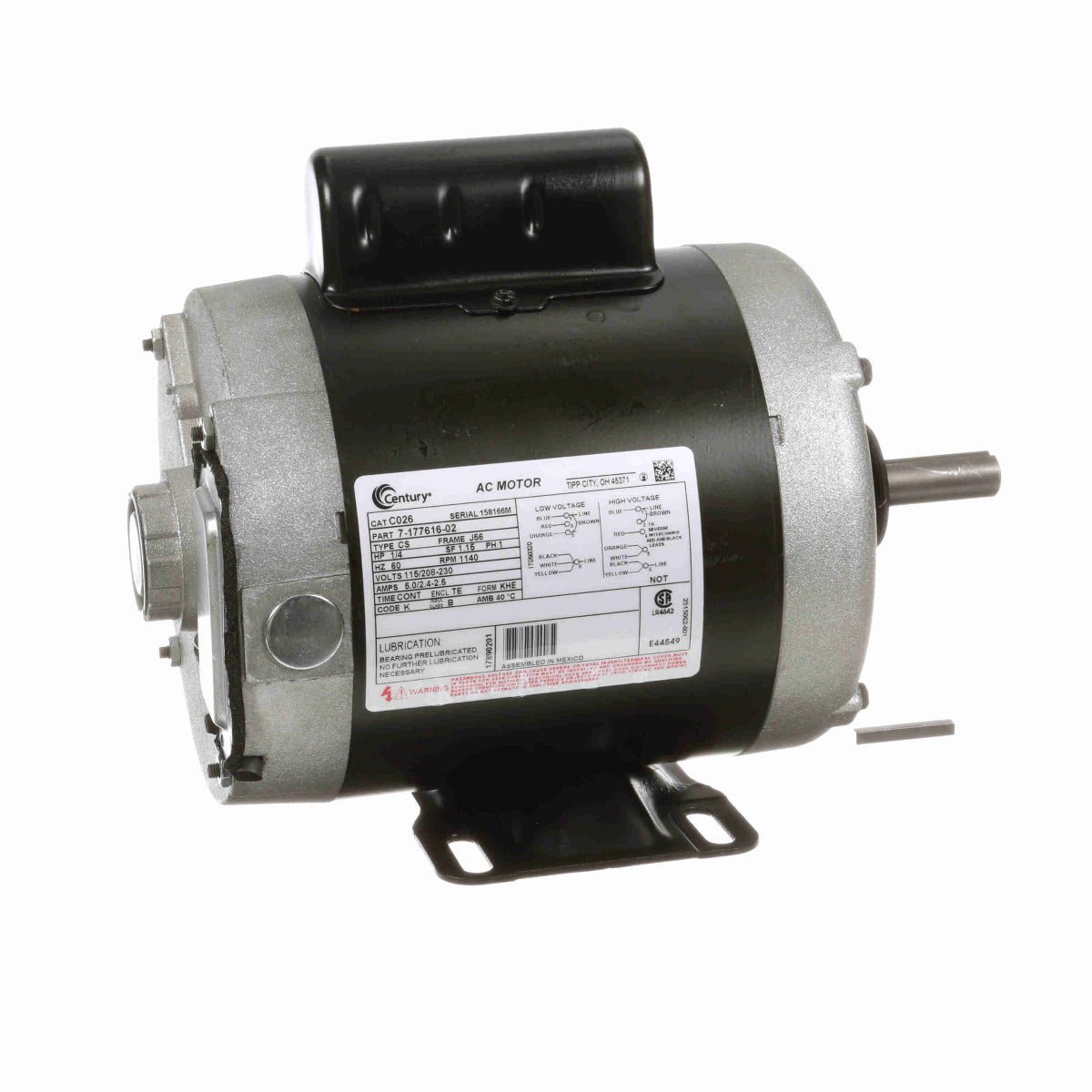

* Image is for reference only

C026 Century Motor 1/4HP 1140RPM J56 TENV 115/208-230 Volt 1 Phase

SKU: C026
$443.46
Sale $443.46
Description
  • Double-shielded bearings extend the service life of the motor.
  • EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
  • Shaft flingers protect bearings from damage caused by dirt and rain.
  • Condensation drains allow the motor to expel and drain built-up moisture.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/4 Hp
Output KW: 0.19 kW Voltage: 115/208-230 V
Speed: 1140 rpm Service Factor: 1.15
Frame: J56 Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 5.0/2.4-2.5 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 6 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.07 in
Frame Length: 5.13 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in

General Specifications

UPC: 786674014979 Weight: 24.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
