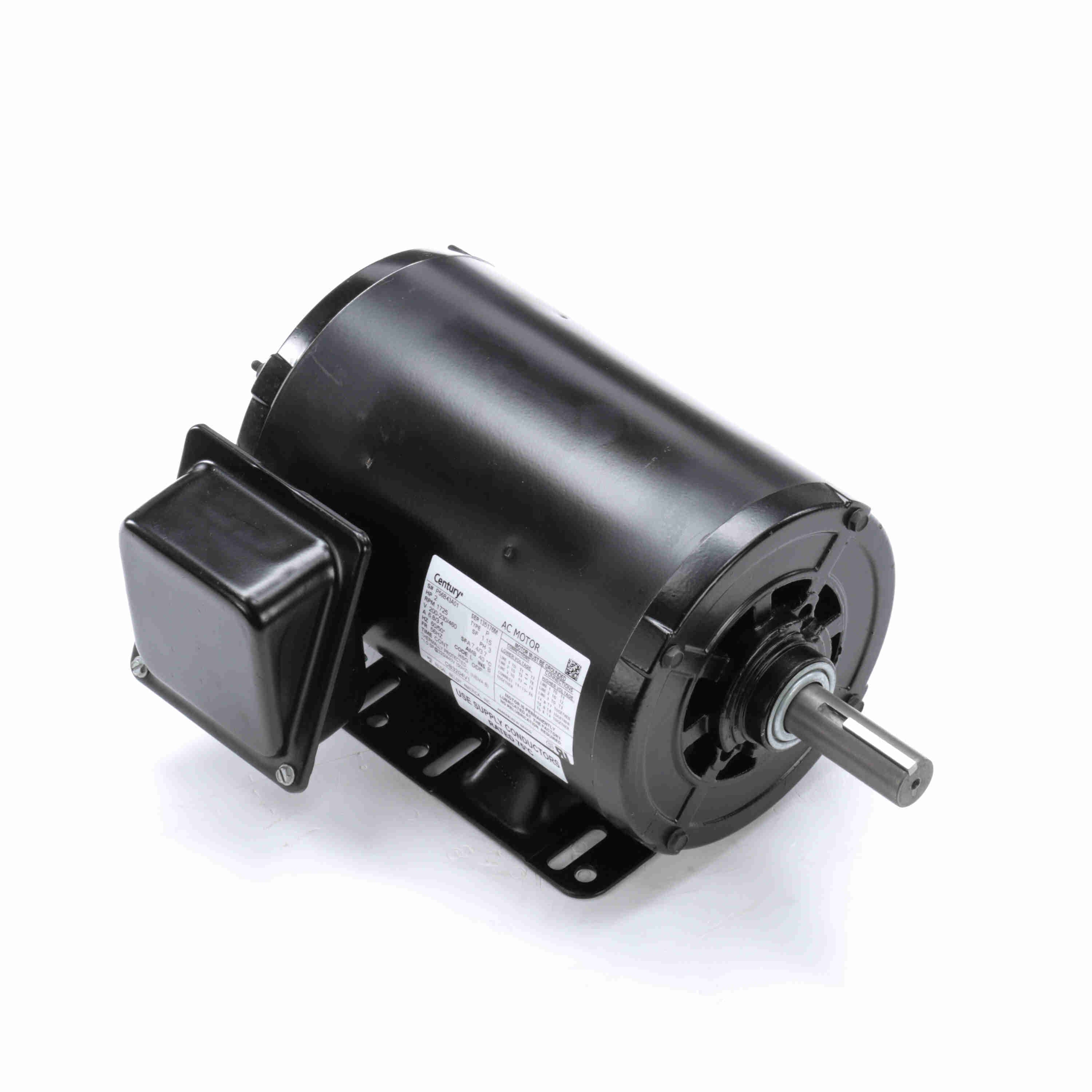

* Image is for reference only

BR3202LES Century Motor 2HP 3450RPM P56H ODP 460/200-230 Volt 3 Phase

SKU: BR3202LES
$692.95
Sale $692.95
Description

THIS ITEM REPLACES CENTURY BR3202L

  • 6-1/2" Diameter Three Phase ODP Motors
  • Pumps, fans, compressors, conveyors
  • Century AO Smith Motor Parts, Diagrams and Specs Available!
Specifications

Nameplate Specifications

Phase: 3 Output HP: 2.0 Hp
Output KW: 1.5 kW Voltage: 230/460 V
Speed: 3450 rpm Service Factor: 1.15
Frame: 56H Enclosure: Open Drip Proof
Thermal Protection: Thermally Protected Efficiency: 85 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 5.4/2.7 A Duty: Continuous
Insulation Class: F UL: Recognized
CSA: Y CE: N
Number of Speeds: 3450

Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 2 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Frame Length: 6.75 in
Shaft Diameter: 0.625 in Shaft Extension: 1.88 in

General Specifications

UPC: 786674073525 Weight: 36.53 LB
Packaged Length: 15.63 IN Packaged Width: 8.63 IN
Packaged Height: 7.63 IN Country of Origin: Mexico
