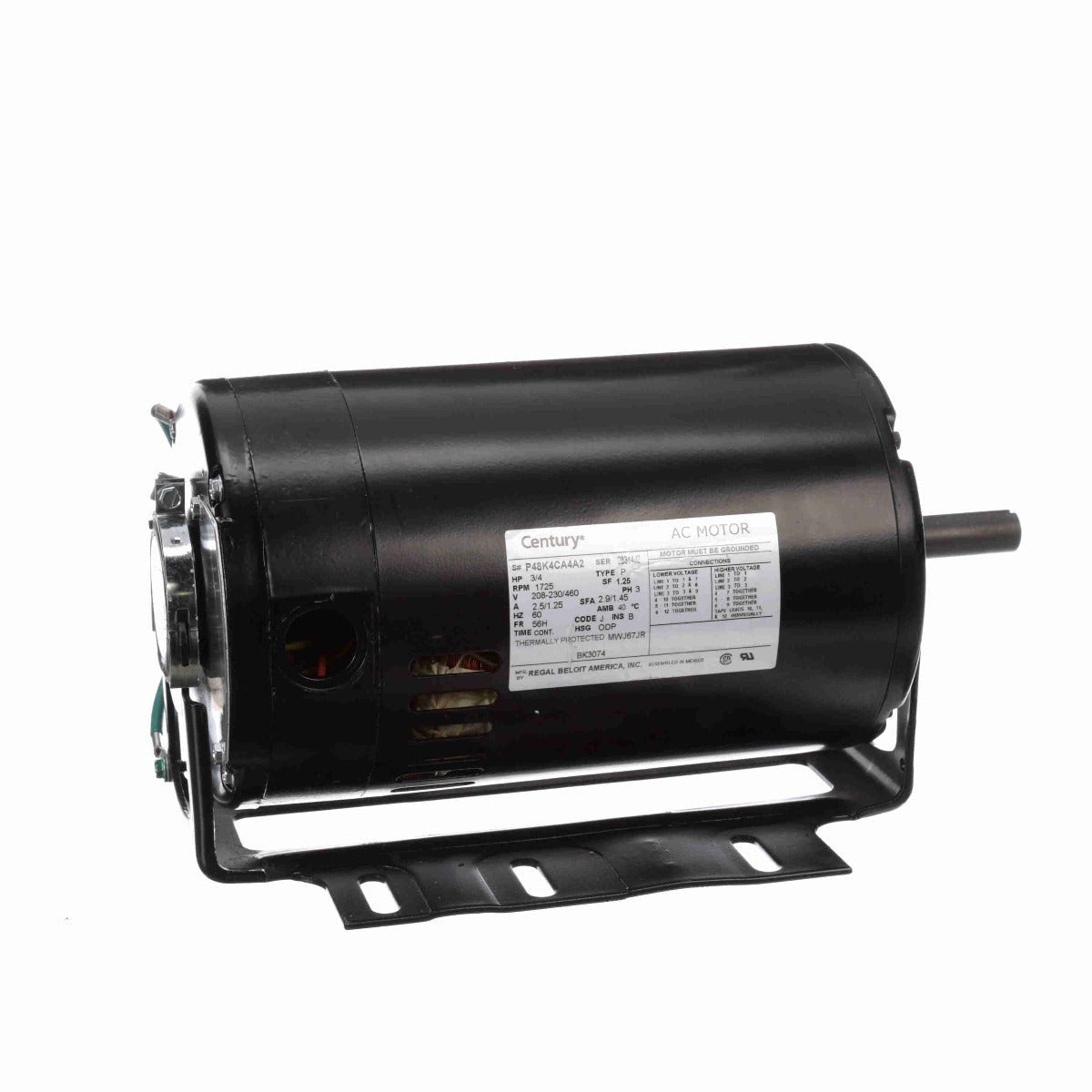

* Image is for reference only

BK3074 Century Motor 3/4HP 1725RPM 56H ODP 208-230/460 Volt 3 Phase

SKU: BK3074
$469.47
Sale $469.47
Description
  • Automatic reset thermal protector prevents overheating.
  • Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
  • Vertical/horizontal mounting for proper placement of the fan within airflow.
Specifications

Nameplate Specifications

Phase: 3 Output HP: 3/4 Hp
Output KW: 0.56 kW Voltage: 208-230/460 V
Speed: 1725 rpm Service Factor: 1.25
Frame: 56H Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 2.5/1.25 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Polyphase Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.94 in
Frame Length: 6.88 in Shaft Diameter: 0.625 in
Shaft Extension: 1.9375 in

General Specifications

UPC: 786674013958 Weight: 22.00 LB
Packaged Length: 13.00 IN Packaged Width: 7.00 IN
Packaged Height: 7.00 IN HTC: 8501.51.4040
Country of Origin: Mexico
