Home » BF1102 Century Motor 1HP 3450RPM 48 ODP 115/208-230 Volt 1 Phase
BF1102 Century Motor 1HP 3450RPM 48 ODP 115/208 - 230 Volt 1 Phase - Square One Electric Motors & Pumps

* Image is for reference only

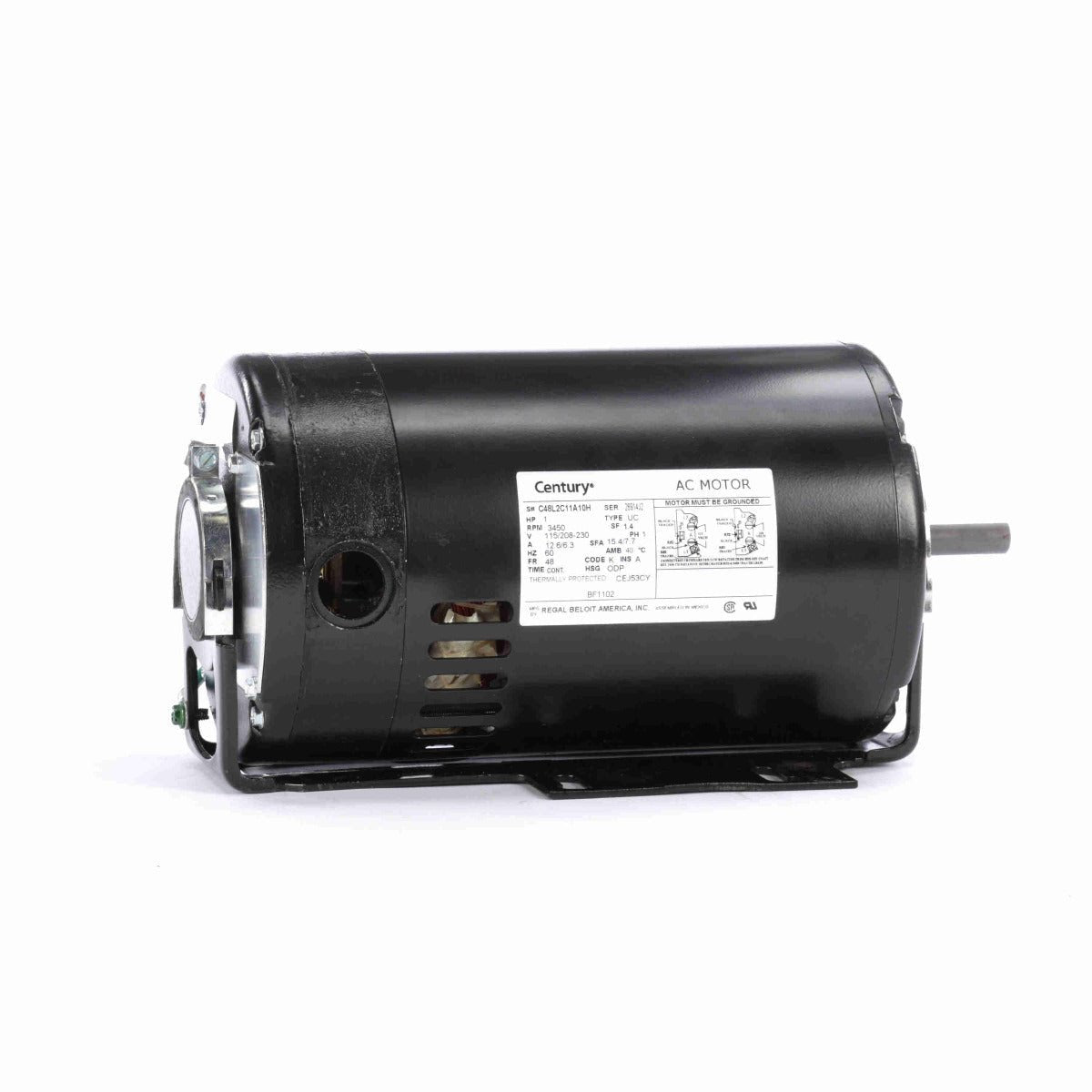

BF1102 Century Motor 1HP 3450RPM 48 ODP 115/208-230 Volt 1 Phase

SKU: BF1102
$97.55
Sale $97.55
Description
  • Resilient Base
  • Single and two speed
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1 Hp
Output KW: 0.75 kW Voltage: 115/208-230 V
Speed: 3450 rpm Service Factor: 1.4
Frame: 48 Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 12.6/6.3 A
Duty: Continuous Insulation Class: A
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 11.56 in
Frame Length: 6.88 in Shaft Diameter: 0.500 in
Shaft Extension: 1.5625 in

General Specifications

UPC: 786674013699 Weight: 23.00 LB
Packaged Length: 12.00 IN Packaged Width: 7.00 IN
Packaged Height: 7.50 IN HTC: 8501.40.6040
Country of Origin: Mexico
