Home » B871 Century Motor 1.5HP 3450RPM T56C TEFC 115/230 Volt 1 Phase
B871 Century Motor 1.5HP 3450RPM T56C TEFC 115/230 Volt 1 Phase - Square One Electric Motors & Pumps

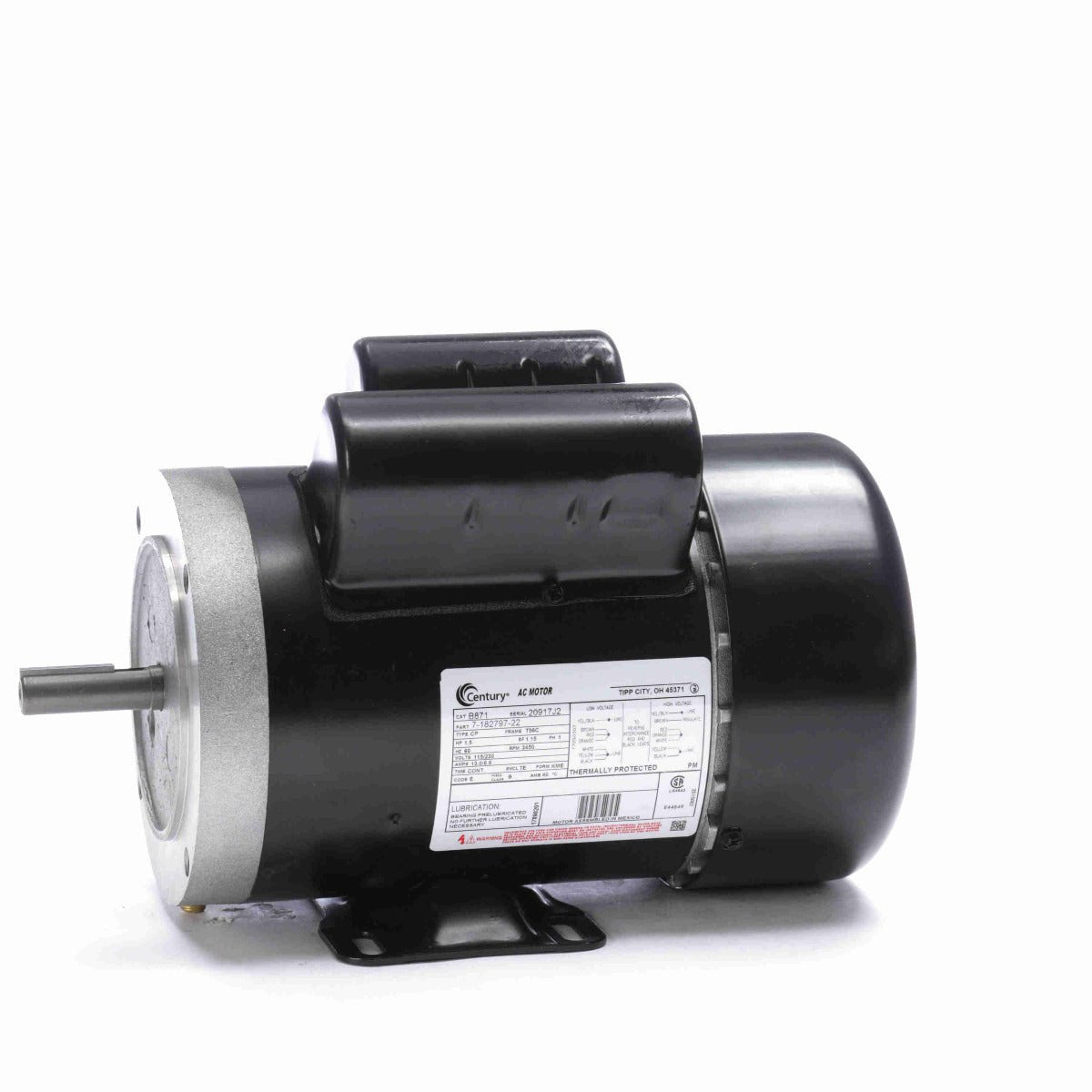

* Image is for reference only

B871 Century Motor 1.5HP 3450RPM T56C TEFC 115/230 Volt 1 Phase

SKU: B871
$462.90
Sale $462.90
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power. specifications
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Capacitor start design optimizes motor torque and effciency performance.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.5 Hp
Output KW: 1.1 kW Voltage: 115/230 V
Speed: 3450 rpm Service Factor: 1.15
Frame: T56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 13.0/6.5 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.71 in
Frame Length: 6.50 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in

General Specifications

UPC: 786674013347 Weight: 33.00 LB
Packaged Length: 15.50 IN Packaged Width: 10.50 IN
Packaged Height: 10.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
