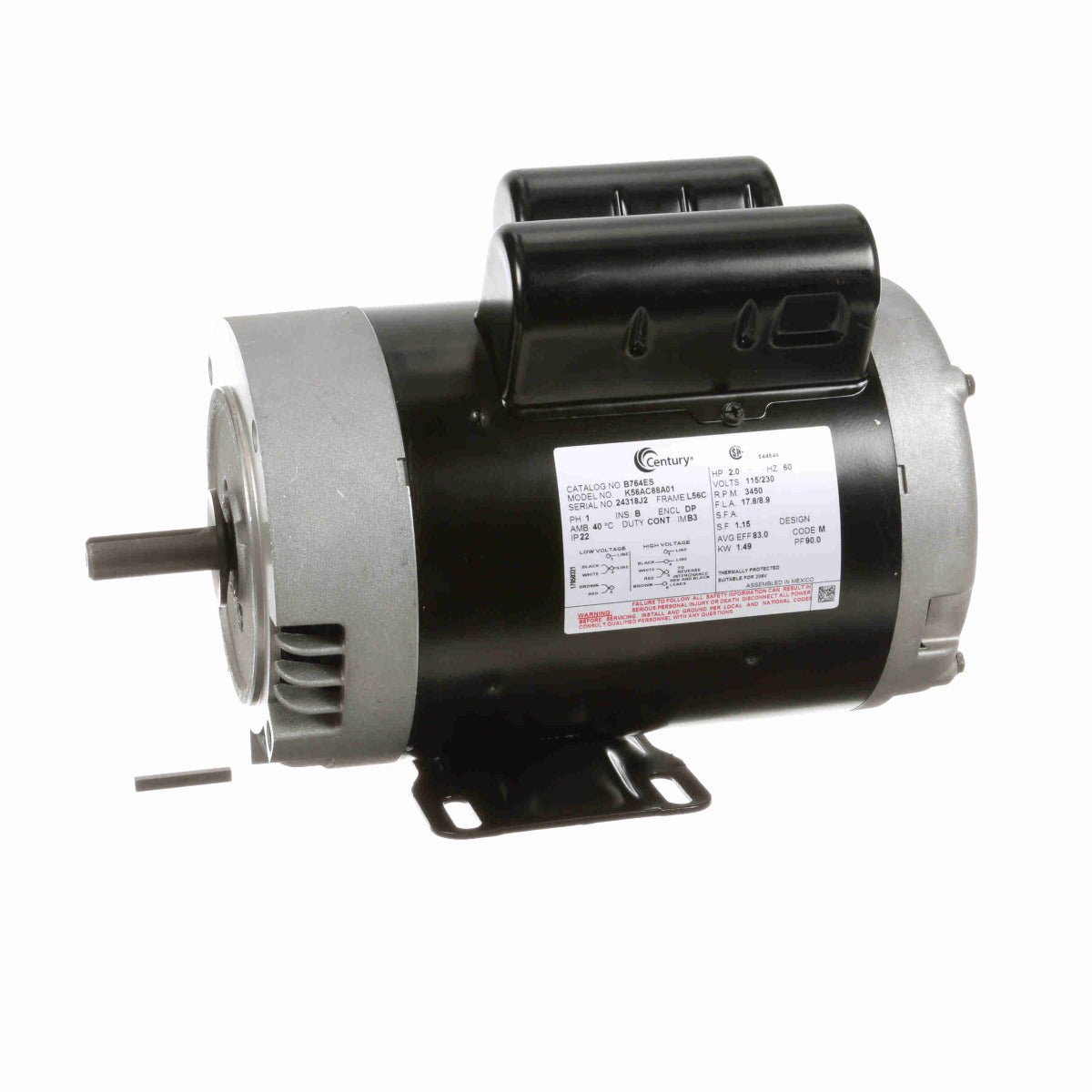

* Image is for reference only

B764ES Century Motor 2HP 3450RPM L56C ODP 208-230/115 Volt 1 Phase

SKU: B764ES
$525.08
Sale $525.08
Description
  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Premium efficiency promotes improved reliability.
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
Specifications

Nameplate Specifications

Phase: 1 Output HP: 2.0 Hp
Output KW: 1.5 kW Voltage: 115/230 V
Speed: 3450 rpm Service Factor: 1.15
Frame: L56C Enclosure: Drip Proof
Thermal Protection: Thermally Protected Efficiency: 83.0 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 17.8/8.9 A Duty: Continuous
Insulation Class: B UL: Recognized
CSA: Y CE: Y
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.70 in
Frame Length: 7.25 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in

General Specifications

UPC: 786674073501 Weight: 24.00 LB
Packaged Length: 15.50 IN Packaged Width: 10.50 IN
Packaged Height: 10.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
