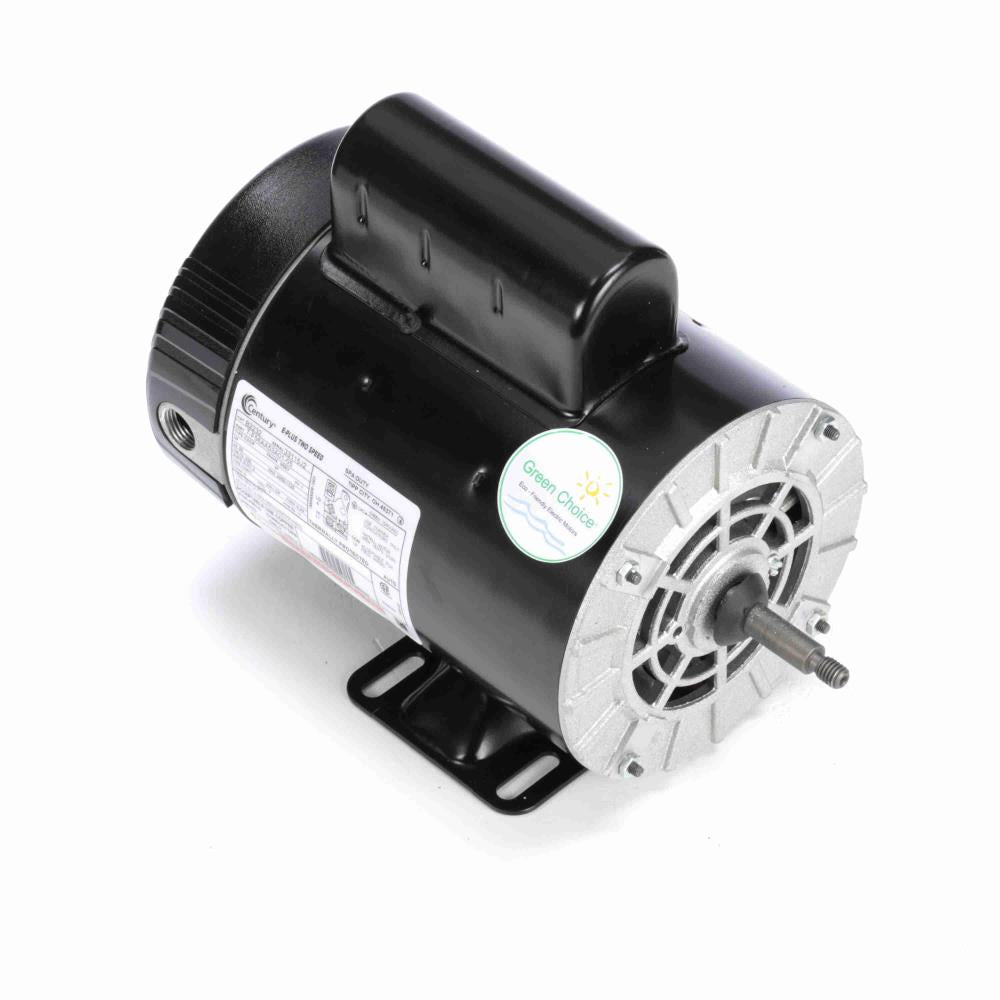

* Image is for reference only

B2232 Century Motor 1HP 3450/1725RPM L56Y ODP 230 Volt 1 Phase

SKU: B2232
$373.83
Sale $373.83
Description
  • This item replaces Century B232
  • Two Speed
  • PSC on High Speed
  • Cap Start/Cap Run on Low Speed
  • Rigid Base
  • 50°C Ambient
  • Four Thru Bolts on a 5.812 Bolt Circle
  • Open Dripproof
  • Meets California Energy Commission Appliance Regulations 2008
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.0 / 0.13 SPL Hp
Output KW: 0.75 kW Voltage: 230 V
Speed: 3450/1725 rpm Service Factor: 1
Frame: N56Y Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 50 °C
Frequency: 60 Hz Current: 6.0/1.2 A
Duty: Continuous Insulation Class: F
UL: Recognized CSA: Y
Number of Speeds: 2

Technical Specifications

Electrical Type: Psc Low Speed, Cap Start/Cap Run High Speed Poles: 2/4
Rotation: Clockwise Mounting: Thru Bolt
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: 3/8 THREADS Overall Length: 11.99 in
Frame Length: 7.25 in Shaft Diameter: 0.500 in
Shaft Extension: 2.37 in

General Specifications

UPC: 786674059987 Weight: 26.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.50 IN
Packaged Height: 11.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
