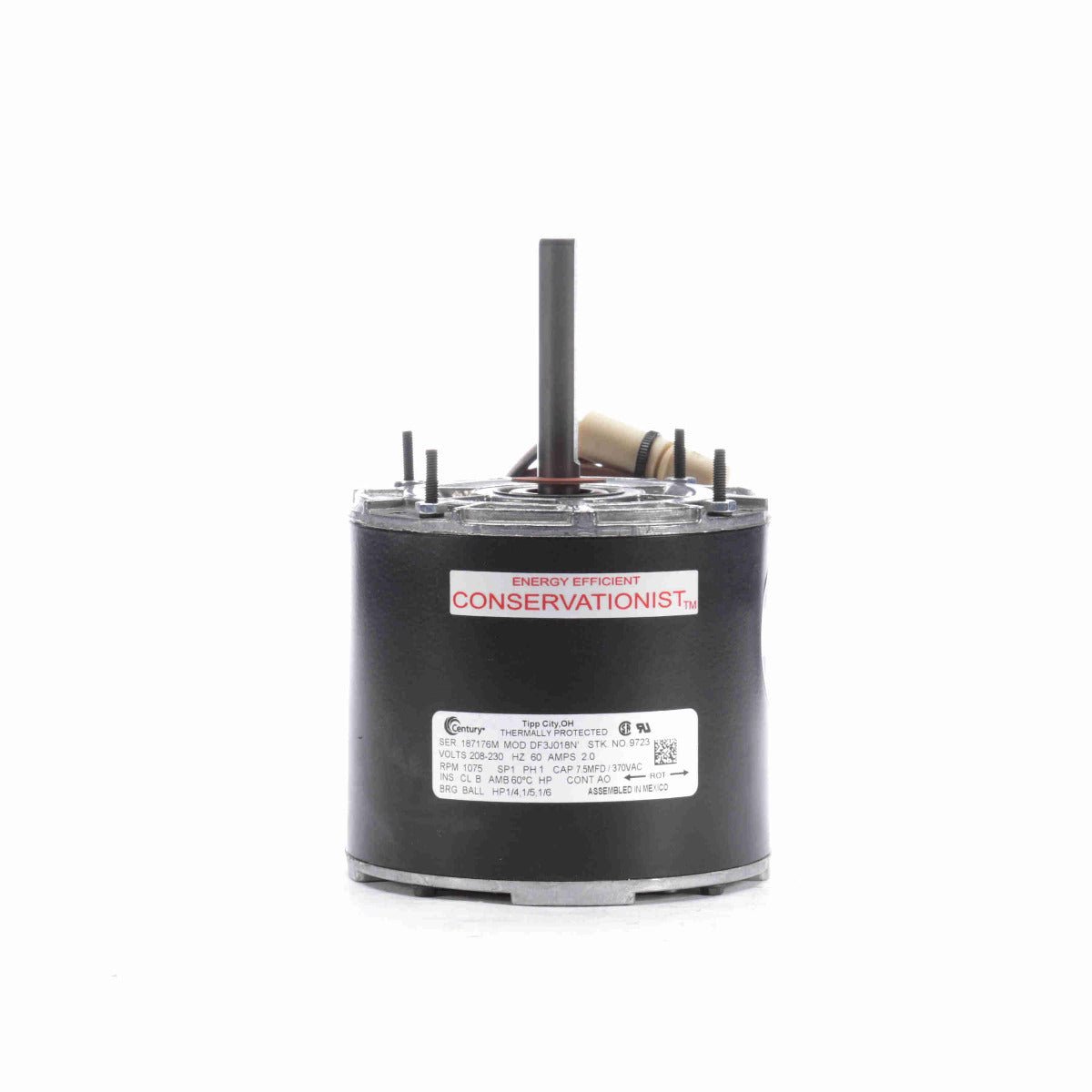

* Image is for reference only

9723 Century Fan Motor 1/4-1/5-1/6HP 1075RPM 42Y ENC 208-230V 1Ph

SKU: 9723
$162.00
Sale $162.00
Description
  • MultiFit - Condenser Fan Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 36" Leads
  • Extend Studs Shaft End and Opposite Shaft End
  • This item replaces Fasco G2245
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/4-1/5-1/6 Hp
Output KW: 0.19 kW Voltage: 208-230 V
Speed: 1075 rpm Service Factor: 1.0
Frame: 42 Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 70 °C
Frequency: 60 Hz Current: 2.0 A
Duty: Air Over Insulation Class: F
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Motor Orientation: Any
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 7.50 in Frame Length: 4.77 in
Shaft Diameter: 0.500 in Shaft Extension: 3.0 in

General Specifications

UPC: 786674009845 Weight: 12.00 LB
Packaged Length: 8.87 IN Packaged Width: 5.81 IN
Packaged Height: 5.81 IN HTC: 8501.40.4040
Country of Origin: India
