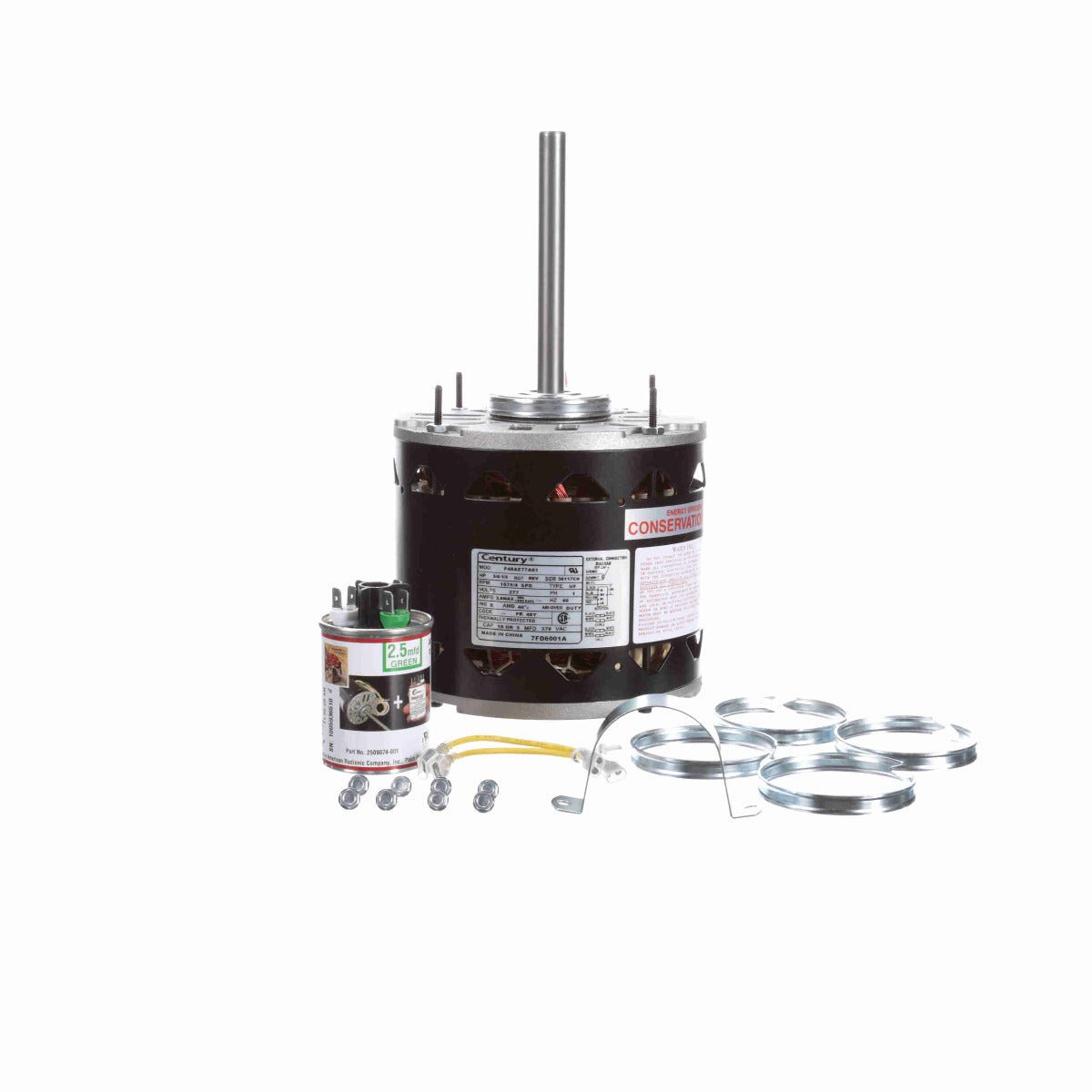

* Image is for reference only

7FD6001A Century Fan & Blower Motor 3/4-1/5HP 1075RPM 48Y OPEN 277Volt 1 Phase

SKU: 7FD6001A
$160.59
Sale $160.59
Description
  • MasterFit Pro - Direct Drive Fan & Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 or 5 Mfd-370 Volts (Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 38" Leads with Quick Connect Terminals
  • Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell
Specifications

Nameplate Specifications

Phase: 1 Output HP: 3/4-1/5 Hp
Output KW: 0.56 kW Voltage: 277 V
Speed: 1075 rpm Service Factor: 1.0
Frame: 48Y Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 3.8 A
Duty: Continuous Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 4

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Resilient Ring/Extended Studs Motor Orientation: Horizontal
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 10.36 in Frame Length: 4.86 in
Shaft Diameter: 0.500 in Shaft Extension: 5.0 in

General Specifications

UPC: 786674060617 Weight: 16.00 LB
Packaged Length: 13.78 IN Packaged Width: 6.41 IN
Packaged Height: 6.81 IN HTC: 8501.40.4040
Country of Origin: Mexico
