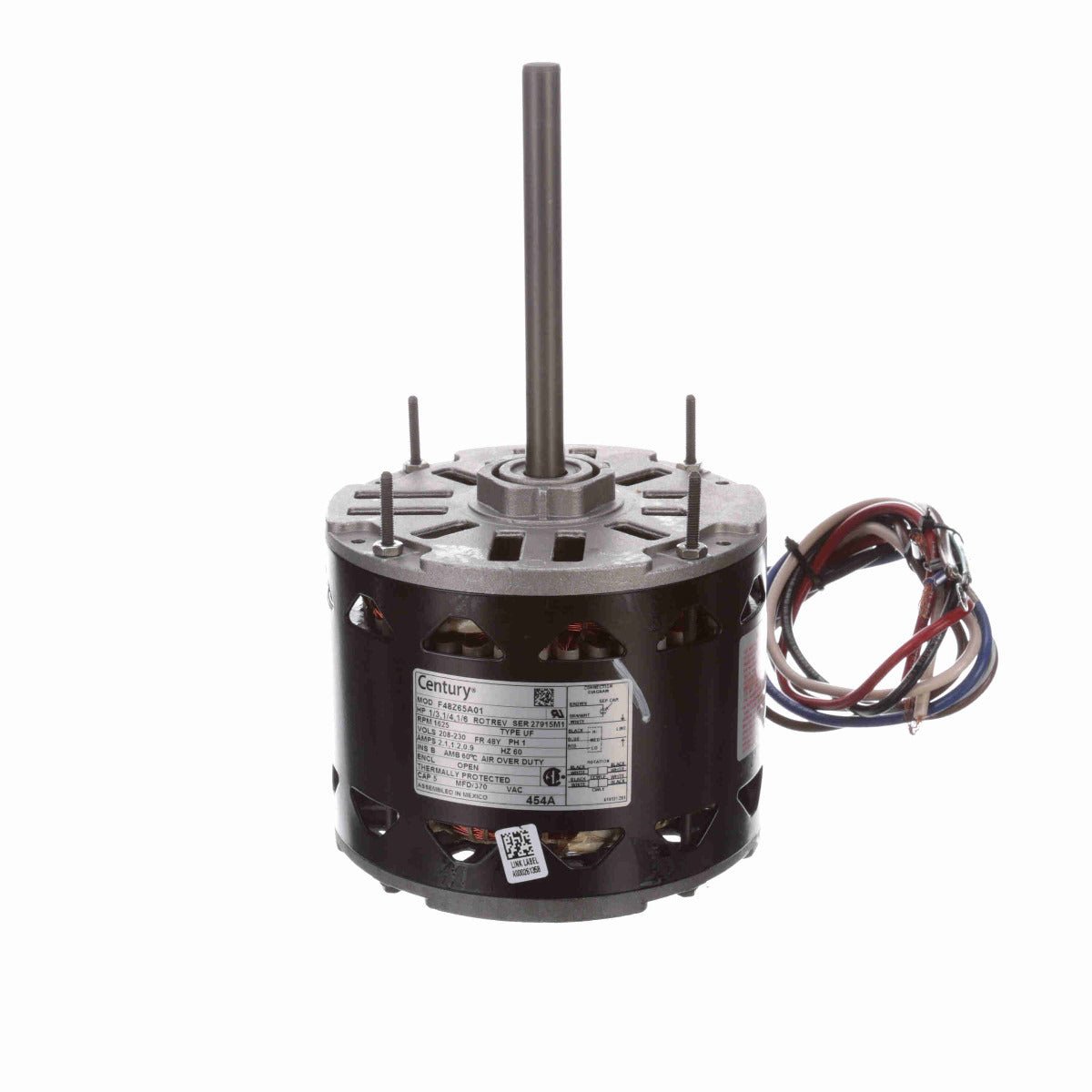

* Image is for reference only

454A Century Condenser Fan Motor 1/3-1/4-1/6HP 1625RPM F48Y OPEN 208-230 Volt 1 Phase

SKU: 454A
$312.27
Sale $312.27
Description
  • This motor replaces Century FD1034
  • Direct Drive Fan & Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 18" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1/3,1/4,1/6 Hp
Output KW: 0.25 kW Voltage: 208-230 V
Speed: 1625 rpm Service Factor: 1.0
Frame: F48Y Enclosure: Open Enclosed
Thermal Protection: Automatic Efficiency: 68 %
Ambient Temperature: 60 °C Frequency: 60 Hz
Current: 2.1,1.2,0.9 A Duty: Air Over
Insulation Class: B UL: Recognized
CSA: Y CE: N
Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Extended Studs Motor Orientation: Any
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 10.41 in Frame Length: 3.88 in
Shaft Diameter: 0.500 in Shaft Extension: 5.48 in

General Specifications

UPC: 786674010179 Weight: 19.00 LB
Packaged Length: 12.87 IN Packaged Width: 6.81 IN
Packaged Height: 6.81 IN HTC: 8501.40.4040
Country of Origin: India
