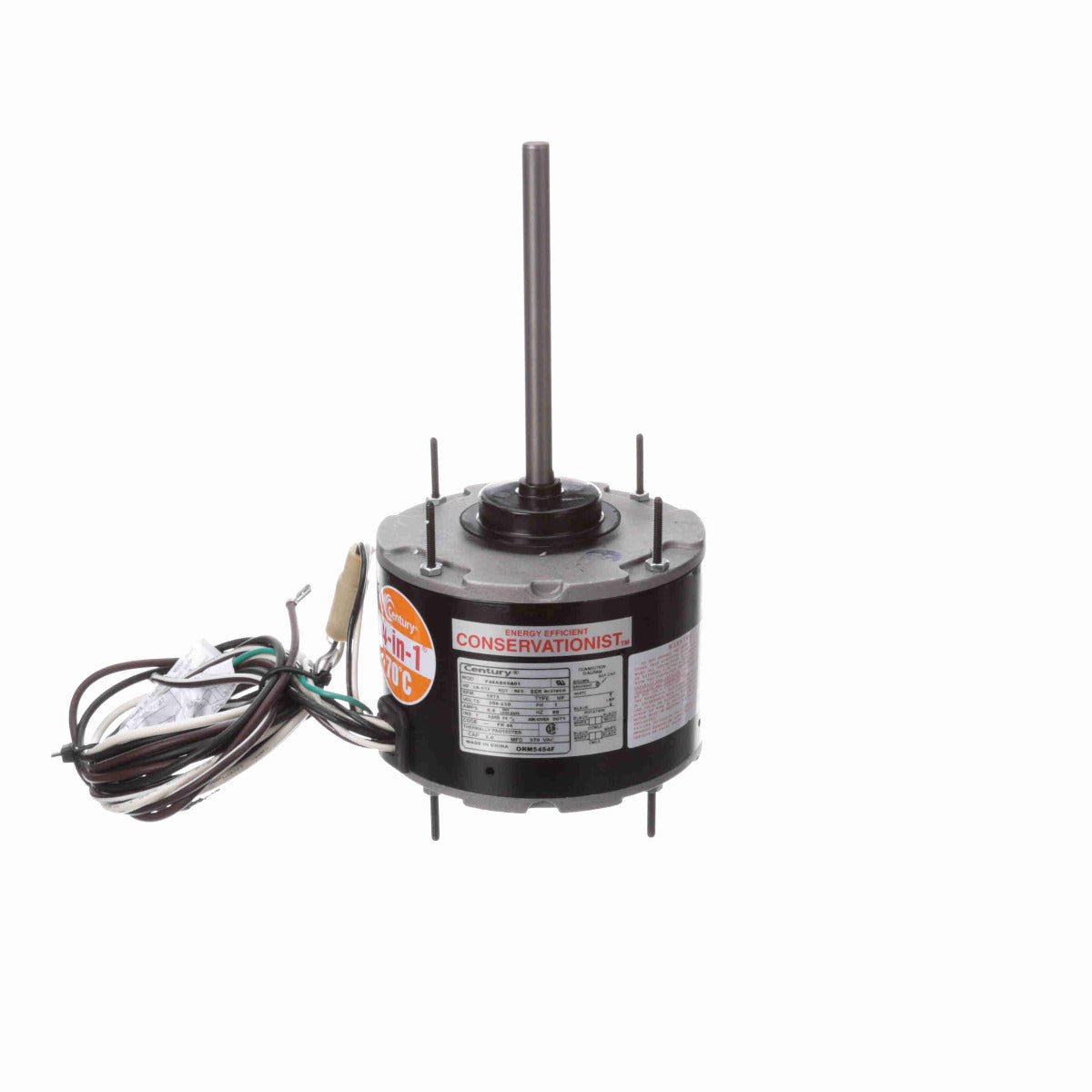

ORM5454F Century Motor 1/8-1/15HP 1075RPM 48 ENC 208-230 Volt 1 Phase
Skip to product information
Open media 1 in modal
* Image is for reference only
ORM5454F Century Motor 1/8-1/15HP 1075RPM 48 ENC 208-230 Volt 1 Phase
SKU:
ORM5454F
Description
Description
4-in-1 HeatMaster - Condenser Fan Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 70°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Double Flat
48" Leads
Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Belly Band
CONTACT US FOR A QUOTE
Name
Email
*
Comment
Send
Description
Description
4-in-1 HeatMaster - Condenser Fan Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 70°C Ambient
Sleeve Bearing
1/2" Diameter Shaft with Double Flat
48" Leads
Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Belly Band
