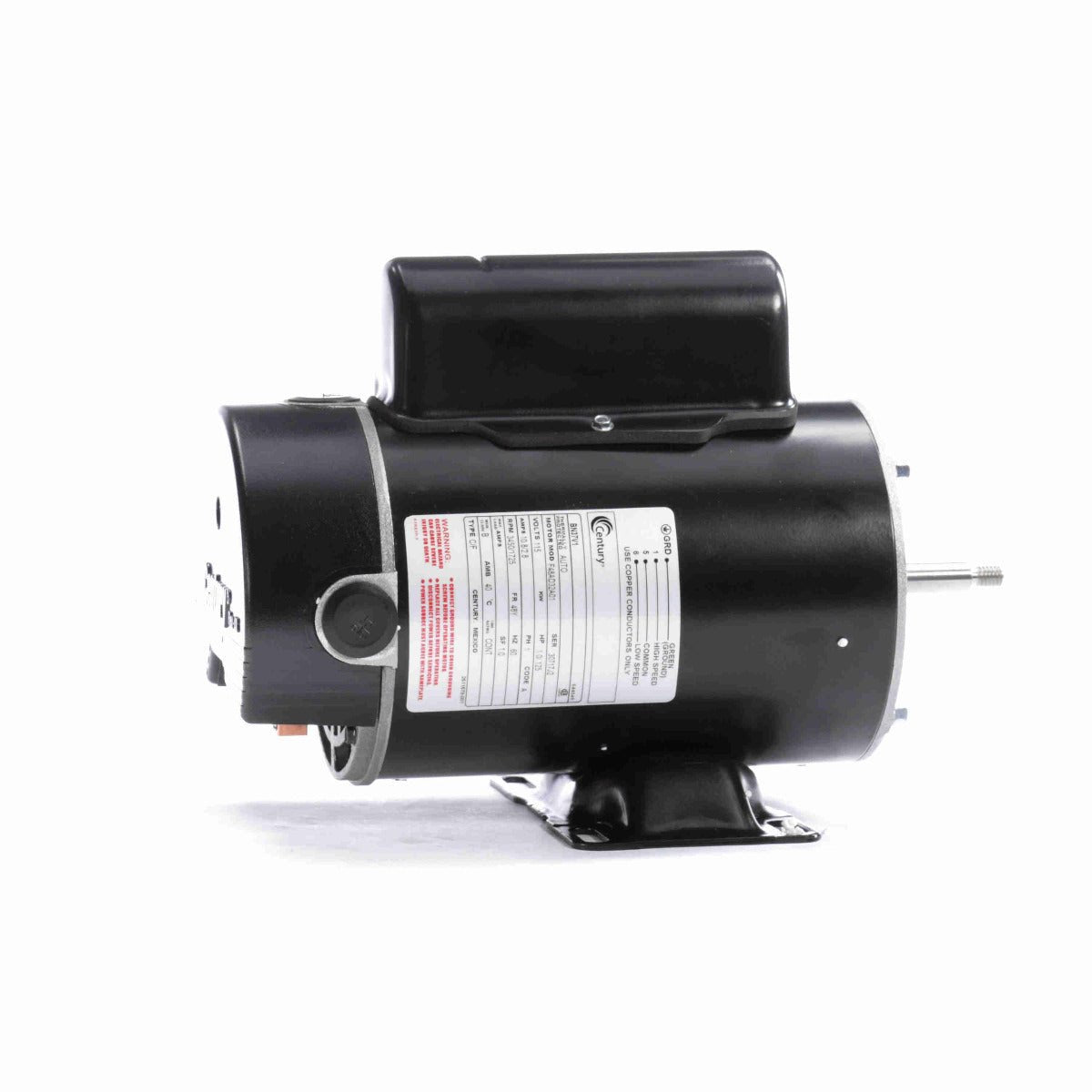

* Image is for reference only

BN37V1 Century Motor 1HP 3450/1725RPM 48Y ODP 115 Volt 1 Phase

SKU: BN37V1
$275.24
Sale $275.24
Description
Title 20 CCR section 1605.3(g)(5): We are unable to ship this product to California
  • Two Speed
  • 12 & 3 O'clock Conduit Entries
  • 3-1/2" Shaft Height
  • 40°C Ambient
  • Four Thru Bolts on a 5.146 Bolt Circle
  • Flex 48 LASAR Line Low Amp Start and Run with 48/56 Base Mounting
  • 48/56 Base Mounting
  • Threaded Shaft
  • Rigid Base
  • Energy Efficient
Specifications

Nameplate Specifications

Phase: 1 Output HP: 1.0/.125 Hp
Output KW: 0.75 kW Voltage: 115 V
Speed: 3450/1725 rpm Service Factor: 1
Frame: 48Y Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 10.8/2.8 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
Number of Speeds: 2

Technical Specifications

Electrical Type: Cap Start Low Speed, Psc High Speed Starting Method: Across The Line
Poles: 2/4 Rotation: Counterclockwise Pump End
Mounting: Thru Bolt Motor Orientation: Horizontal
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: 3/8 Threaded
Overall Length: 12.71 in Frame Length: 7.50 in
Shaft Diameter: 0.500 in Shaft Extension: 2.375 in

General Specifications

UPC: 786674057310 Weight: 25.00 LB
Packaged Length: 16.00 IN Packaged Width: 9.50 IN
Packaged Height: 11.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
