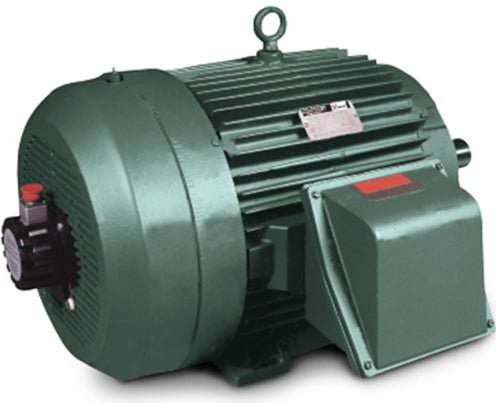

ZDVSNM2333T Baldor Motor 15HP 1800RPM 256TC TENV 208-230/460 Volt 3 Phase 09K345X946Z1

ZDVSNM2333T Baldor Electric Motor 15HP 1800RPM 3PH 60HZ 256TC TENV FOOT

This Baldor electric motor used for conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 09K345X946Z1

Catalog Number    ZDVSNM2333T
Enclosure    TENV
Frame    256TC
Frame Material    Cast Iron
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    15.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals    UR
CSA
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    18.500 A @ 460.0 V
37.000 A @ 230.0 V
Design Code    A
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    92.4 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    ENCODER
Front Face Code    Encoder/Feedback Device
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    18.5 a
Insulation Class    F
Inverter Code    Inverter Duty
KVA Code    K
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Max Speed    2700 rpm
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 12 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    0948M
Mounting Arrangement    F1
Number of Poles    4
Overall Length    24.11 IN
Power Factor    80
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Standard
Rodent Screen    None
RoHS Status    ROHS NON-COMPLIANT
Service Factor    1.00
Shaft Diameter    1.625 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    Shaft Slinger
Speed    1765 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    Normally Closed Thermostat
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
