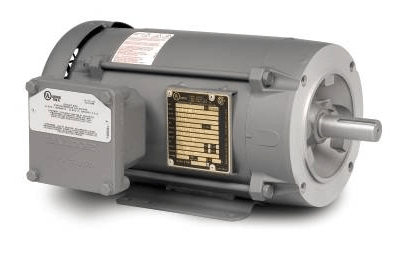

* Image is for reference only

XL181542 Baldor Motor 1.5HP 1725RPM 184C XPFC 115/208-230 Volt 1 Phase 36N11-79G1

SKU: XL181542
Sale
Description

Limited Quantity - Please Call for Availability

Replaces Baldor L5013

Current model Spec# 36N11-79G1

NP1426XPSL

Single Phase explosion proof AC motor can be used for pumps, machinery, and more.

Ships new with manufacturer's warranty.

SPECS
Catalog Number XL181542 Enclosure TEFC Frame 184 Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group CLI GP D; CLII GP F,G Haz Area Division Division I Motor Letter Type Cap Start, Induction Run Output @ Frequency 1.500 HP @ 60 HZ Phase 1 Synchronous Speed @ Frequency 1800 RPM @ 60 HZ Voltage @ Frequency 115.0 V @ 60 HZ
230.0 V @ 60 HZ Agency Approvals UL
CSA Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 19.000 A @ 115.0 V
9.500 A @ 230.0 V Design Code L Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 70.0 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Shaft Indicator None Haz Area Temp Code T3C Heater Indicator No Heater High Voltage Full Load Amps 9.5 a Insulation Class F Inverter Code Not Inverter IP Rating NONE KVA Code L Lifting Lugs No Lifting Lugs Locked Bearing Indicator No Locked Bearing Motor Lead Quantity/Wire Size 4 @ 14 AWG, A PH Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3628L Mounting Arrangement F1 Number of Poles 4 Overall Length 16.92 IN Power Factor 70 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code Standard Pulley Shaft Indicator Standard Rodent Screen None RoHS Status ROHS NON-COMPLIANT Service Factor 1.15 Shaft Diameter 0.875 IN Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1725 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding Normally Closed Thermostat Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None
Nameplate
NO. CC
SER.
SPEC. 36N07-79
CAT.NO. XL181542
HP 1.5 T. CODE T3C
VOLTS 115/230
AMPS 19/9.5
RPM 1725
HZ 60 PH 1 CL F
SER.F. 1.15 DES L CODE L
RATING 40C AMB-CONT
FRAME 184 NEMA-NOM-EFF 70
PF 70
BLANK

NP1426XPSL
