VM3537 Baldor Motor 1/2HP 3450RPM 56C TEFC 3 Phase 34A063R708

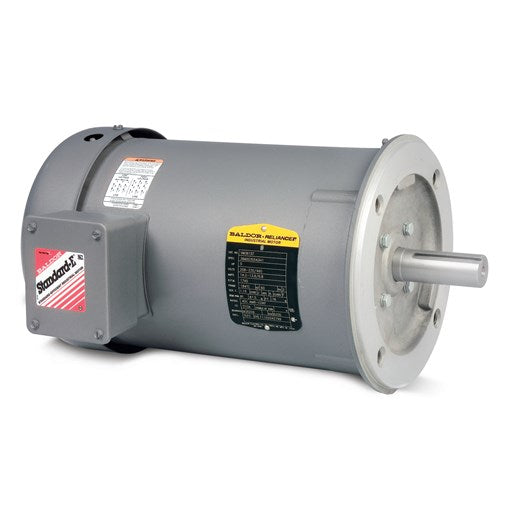

* Image is for reference only

VM3537 Baldor Motor 1/2HP 3450RPM 56C TEFC 208-230/460 Volt 3 Phase 34A063R708

SKU: VM3537
Sale
Description



The Baldor VM3537 Motor (Specification #34A63-232) is a dependable choice for applications such as fans, pumps, blowers, conveyors, compressors, and various industrial machinery. Manufactured in the USA, this energy-efficient motor features a footless design for reduced weight and enhanced safety, a locked DE bearing for versatile mounting, and compatibility with inverter use according to NEMA MG1 standards. Designed for durability, it comes with a 3-year warranty on premium efficient Super-E® models, supporting 60 Hz operation with 50 Hz data available for select pole and horsepower ratings.

SPECS:
Catalog Number VM3537 Enclosure TEFC Frame 56C Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency .500 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 3600 RPM @ 60 HZ Voltage @ Frequency 230.0 V @ 60 HZ 460.0 V @ 60 HZ Agency Approvals CURUS Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator No Mounting Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage .800 A @ 460.0 V 1.540 A @ 208.0 V 1.600 A @ 230.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 72.0 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 0.8 a Insulation Class B Inverter Code Not Inverter KVA Code J Lifting Lugs No Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 18 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3410M Mounting Arrangement F1 Number of Poles 2 Overall Length 11.35 IN Power Factor 80 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code C-Face Pulley Shaft Indicator Standard Rodent Screen None RoHS Status ROHS COMPLIANT Service Factor 1.25 Shaft Diameter 0.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 3420 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None
Nameplate:
CAT.NO. VM3537
SPEC. 34A063R708
HP .5
VOLTS 230/460
AMP 1.6/.8
RPM 3420
FRAME 56C HZ 60 PH 3
SER.F. 1.25 CODE J DES B CLASS B
NEMA-NOM-EFF 72 PF 80
RATING 40C AMB-CONT
CC
DE 6203 ODE 6203
ENCL TEFC SN
SFA 1.9/0.95A
NP1256L
