VM3535 Baldor Motor 1/3HP 1140RPM 56C TEFC 3 Phase 34A63-5883

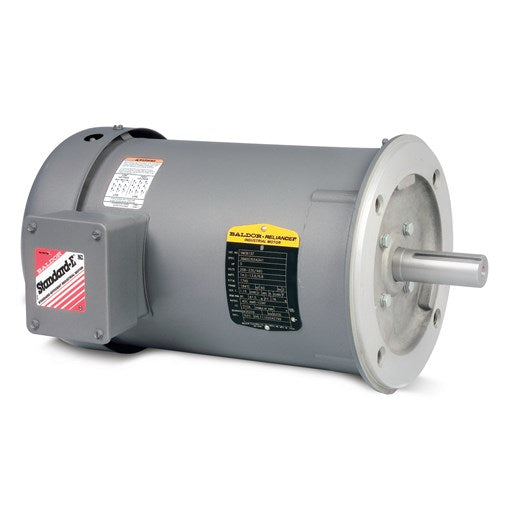

* Image is for reference only

VM3535 Baldor Motor 1/3HP 1140RPM 56C TEFC 208-230/460 Volt 3 Phase 34A63-5883

SKU: VM3535
Sale
Description

Specification # 34A63-5883

Baldor Motor VM3535 is among many of our general purpose three phase motors.

Baldor's extensive line of General Purpose three phase motors are available in totally enclosed cast iron and industrial steel band for harsh applications such as fans, conveyors, compressors, etc. Designed for "general purpose" use means that these motors can be used in many applications. The Super E Motors (EM & CEM) provide NEMA Premium efficiency and are designed as standard to be inverter ready with wide variable torque speed ranges.

SPECS:
Catalog Number VM3535 Enclosure TEFC Frame 56C Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency .330 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1200 RPM @ 60 HZ Voltage @ Frequency 230.0 V @ 60 HZ 460.0 V @ 60 HZ Agency Approvals CURUS Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator No Mounting Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage .900 A @ 460.0 V 1.800 A @ 230.0 V 2.100 A @ 208.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 70.0 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 0.9 a Insulation Class B Inverter Code Not Inverter KVA Code K Lifting Lugs No Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 18 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3414M Mounting Arrangement F1 Number of Poles 6 Overall Length 11.35 IN Power Factor 51 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code C-Face Pulley Shaft Indicator Standard Rodent Screen None RoHS Status ROHS COMPLIANT Service Factor 1.35 Shaft Diameter 0.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1140 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None
Nameplate:
CAT.NO. VM3535
SPEC. 34A63-5883
HP .33
VOLTS 230/460
AMP 1.8/.9
RPM 1140
FRAME 56C HZ 60 PH 3
SER.F. 1.35 CODE K DES B CLASS B
NEMA-NOM-EFF 70 PF 51
RATING 40C AMB-CONT
CC
DE 6203 ODE 6203
ENCL TEFC SN
SFA 2/1
NP1256L
