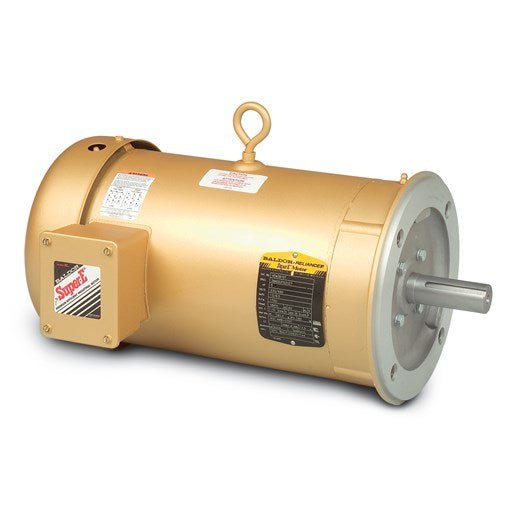

VEM3546T Baldor Motor 1HP 1765RPM 143TC TEFC 208-230/460 Volt 3 Phase 35A003M492G1

Specification # 35A003P529G1 / Replaces VM3546T

Baldor VEM3546T Motor is a sturdy motor that is used for Fans, Pumps, Blowers, Conveyors, Compressors, Industrial Machines, and Other General Purpose Applications.  Baldor motors and parts are reliable and built to last.

Baldor VEM3546T Motor features include:

• Footless design reduces weight and improves safety

• Locked DE bearing to allow mounting in any configuration

• 60 Hz designs with 50 Hz information on 2,4,6 Pole 1-125 Hp ratings

• Suitable for Inverter use per NEMA MG1 Part 31.4.4.2

• Designed for longevity with a 3 year warranty on premium efficient Super-E® Motors

Baldor Electric motor parts, diagram, and specs online. For technical support or motor connection diagrams contact Square One Electric at (302) 678-0400.

Catalog Number    VEM3546T
Enclosure    TEFC
Frame    143TC
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    1.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    CURUSEEV
NEMA PREMIUM
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    No Mounting
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    3.200 A @ 208.0 V
3.200 A @ 230.0 V
1.600 A @ 460.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    85.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    1.6 a
Insulation Class    F
Inverter Code    Inverter Duty
KVA Code    N
Lifting Lugs    No Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Quantity/Wire Size    9 @ 18 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3520M
Mounting Arrangement    F1
Number of Poles    4
Overall Length    12.29 IN
Power Factor    69
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Standard
Rodent Screen    None
RoHS Status    ROHS COMPLIANT
Service Factor    1.15
Shaft Diameter    0.875 IN
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1770 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
