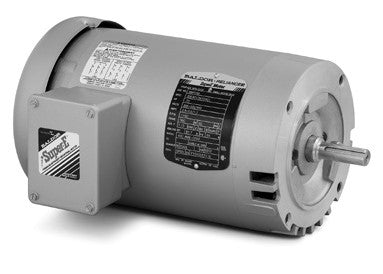

VEM3215T Baldor Motor 2HP 1140RPM 184TC OPEN 208-230/460 Volt 3 Phase 36Q489S947G1

Baldor's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for "general purpose" use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 36B005Y537H1

Catalog Number    VEM3215T
Enclosure    ODP
Frame    184TC
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    2.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1200 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    CURUSEEV
NEMA_PREMIUM
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    No Mounting
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    6.800 A @ 208.0 V
6.800 A @ 230.0 V
3.400 A @ 460.0 V
Design Code    B
Drip Cover    Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    87.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Drip Cover Mounting
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    3.4 a
Insulation Class    F
Inverter Code    Inverter Ready
KVA Code    L
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 16 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3636M
Mounting Arrangement    F1
Number of Poles    6
Overall Length    18.03 IN
Power Factor    63
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Standard
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    1.125 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1165 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
