Home » VEM31157 Baldor Motor 2HP 1725RPM 56C OPEN 460 Volt 3 Phase 35E4017M496G1
VEM31157 Baldor Motor 2HP 1725RPM 56C OPEN 3 Phase 35E4017M496G1

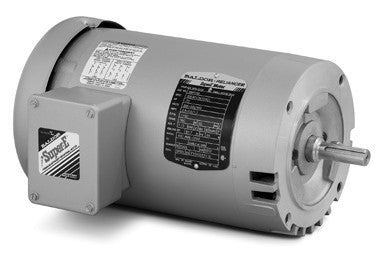

* Image is for reference only

VEM31157 Baldor Motor 2HP 1725RPM 56C OPEN 460 Volt 3 Phase 35E4017M496G1

SKU: VEM31157
Sale
Description

Baldor motor for fans, blowers, compressors, tools, speed reducers.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 35B15-754

SPECS:
Catalog Number VEM31157 Enclosure ODP Frame 56C Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency 2.000 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1800 RPM @ 60 HZ Voltage @ Frequency 230.0 V @ 60 HZ 460.0 V @ 60 HZ Agency Approvals CURUSEEV Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator No Mounting Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 2.800 A @ 460.0 V 5.600 A @ 230.0 V 5.800 A @ 208.0 V Design Code B Drip Cover Drip Cover Duty Rating CONT Efficiency @ 100% Load 86.5 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 2.8 a Insulation Class F Inverter Code Inverter Ready KVA Code K Lifting Lugs No Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 18 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3528M Mounting Arrangement F1 Number of Poles 4 Overall Length 13.23 IN Power Factor 77 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code C-Face Pulley Shaft Indicator Standard Rodent Screen None RoHS Status ROHS COMPLIANT Service Factor 1.15 Shaft Diameter 0.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1760 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None
Nameplate:
CAT.NO. VEM31157
SPEC. 35E4017G073G1
HP 2
VOLTS 230/460
AMPS 5.6/2.8
RPM 1760
FRAME 56C HZ 60 PH 3
SF 1.15 CODE K DES B CLASS F
F.L. AVG. EFF. 86.5 PF 77
RATING 40C AMB-CONT
CC
DE 6205 ODE 6203
ENCL OPEN SN
USABLE AT 2HP 50HZ 190/380V 6.6/3.3A SF1.0
NP3155LUA
