VEM31115 Baldor Motor 1HP 3450RPM 56C OPEN 3 Phase 34F012-3226G1

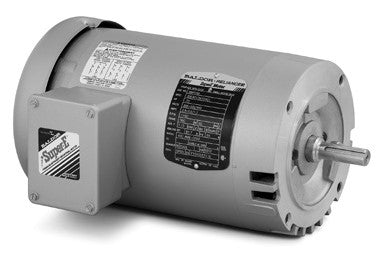

* Image is for reference only

VEM31115 Baldor Motor 1HP 3450RPM 56C OPEN 208-230/460 Volt 3 Phase 34F012-3226G1

SKU: VEM31115
Sale
Description

Baldor's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for "general purpose" use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 34F12-282

SPECS:
Catalog Number VEM31115 Enclosure ODP Frame 56C Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency 1.000 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 3600 RPM @ 60 HZ Voltage @ Frequency 208.0 V @ 60 HZ 230.0 V @ 60 HZ 460.0 V @ 60 HZ Agency Approvals CURUSEEV Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator No Mounting Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 1.600 A @ 460.0 V 2.900 A @ 208.0 V 3.200 A @ 230.0 V Design Code B Drip Cover Drip Cover Duty Rating CONT Efficiency @ 100% Load 77.0 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Drip Cover Mounting Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 1.6 a Insulation Class F Inverter Code Not Inverter KVA Code L Lifting Lugs No Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 18 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3420M Mounting Arrangement F1 Number of Poles 2 Overall Length 11.84 IN Power Factor 82 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code C-Face Pulley Shaft Indicator Standard Rodent Screen None RoHS Status ROHS COMPLIANT Service Factor 1.25 Shaft Diameter 0.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 3450 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None
Nameplate:
CAT.NO. VEM31115
SPEC. 34F012-3226G1
HP 1
VOLTS 208-230/460
AMPS 2.9-3.2/1.6
RPM 3450
FRAME 56C HZ 60 PH 3
SF 1.25 CODE L DES B CLASS F
F.L. AVG. EFF. 77 PF 82
RATING 40C AMB-CONT
CC
DE 6203 ODE 6203
ENCL OPEN SN
USABLE AT 50HZ 1HP 190/380V 3.4/1.7A SF1.0
NP3155LUA
