Home » VEM31112 Baldor Motor 3/4HP 1725RPM 56C OPEN 208-230/460 Volt 3 Phase 35E4017N725G1
VEM31112 Baldor Motor 3/4HP 1725RPM 56C OPEN 3 Phase 35E4017N725G1

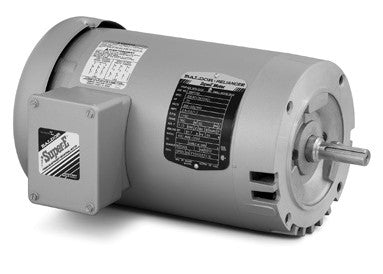

* Image is for reference only

VEM31112 Baldor Motor 3/4HP 1725RPM 56C OPEN 208-230/460 Volt 3 Phase 35E4017N725G1

SKU: VEM31112
Sale
Description

Baldor motor for fans, blowers, compressors, tools, speed reducers.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 34F12-883

SPECS:
Catalog Number VEM31112 Enclosure ODP Frame 56C Frame Material Steel Frequency 60.00 Hz Motor Letter Type Three Phase Output @ Frequency .750 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1800 RPM @ 60 HZ Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ Haz Area Class and Group None Haz Area Division Not Applicable Agency Approvals CURUSEEV Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator No Mounting Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 1.210 A @ 460.0 V
2.420 A @ 208.0 V
2.420 A @ 230.0 V Design Code B Drip Cover Drip Cover Duty Rating CONT Efficiency @ 100% Load 82.5 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK High Voltage Full Load Amps 1.2 a Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater Insulation Class F Inverter Code Inverter Ready KVA Code K Lifting Lugs No Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Termination Flying Leads Motor Lead Quantity/Wire Size 9 @ 18 AWG Motor Type 3514M Mounting Arrangement F1 Number of Poles 4 Overall Length 12.22 IN Power Factor 74 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code C-Face Pulley Shaft Indicator Standard Rodent Screen None Service Factor 1.25 Shaft Diameter 0.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1765 rpm Speed Code Single Speed Motor Standards NEMA Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None
Nameplate:
CAT.NO. VEM31112
SPEC. 35E4017G069G1
HP .75
VOLTS 230/460
AMP 2.42/1.21
RPM 1765
FRAME 56C HZ 60 PH 3
SER.F. 1.25 CODE K DES B CL F
F.L. AVG. EFF. 82.5 PF 74
RATING 40C AMB-CONT
CC
DE 6205 ODE 6203
ENCL OPEN SN
SFA 2.68/1.34
NP3155L
