VEM2516T Baldor Motor 25HP 3500RPM 254TC OPEN 3 Phase 39P021X424G1

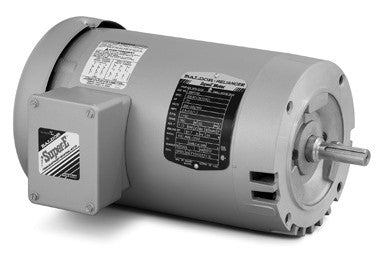

* Image is for reference only

VEM2516T Baldor Motor 25HP 3500RPM 254TC OPEN 230/460V 3 Phase 39P021X424G1

SKU: VEM2516T
Sale
Description

cem2516tBaldor General Purpose Open Motors used on Fans, blowers, compressors, tools, speed reducers

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 39P021X103

SPECS:
Catalog Number VEM2516T Enclosure ODP Frame 254TC Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency 25.000 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 3600 RPM @ 60 HZ Voltage @ Frequency 460.0 V @ 60 HZ 230.0 V @ 60 HZ Agency Approvals CURUSEEV NEMA_PREMIUM Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator No Mounting Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 56.000 A @ 230.0 V 62.000 A @ 208.0 V 28.000 A @ 460.0 V Design Code A Drip Cover Drip Cover Duty Rating CONT Efficiency @ 100% Load 91.7 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Drip Cover Mounting Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 28.0 a Insulation Class F Inverter Code Inverter Ready KVA Code G Lifting Lugs Standard Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 10 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3938M Mounting Arrangement F1 Number of Poles 2 Overall Length 22.15 IN Power Factor 89 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code C-Face Pulley Shaft Indicator Standard Rodent Screen None Service Factor 1.15 Shaft Diameter 1.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 3515 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None
Nameplate:
CAT.NO. VEM2516T P/N ENCL OPEN
SPEC. 39P021X424G1 CC 010A FRAME 254TC SER.NO.
HP 25 CLASS F HZ 60
RPM 3515 PH 3 DES A
VOLTS 230/460 CODE G ODE BRG 6208 DE BRG 6309
AMPS 56/28
RATING 40C AMB-CONT NEMA-NOM-EFF 91.7 GREASE POLYREX EM
PF 89 SER.F. 1.15 CT30-60(2:1) VT3-60(20:1)
USABLE AT 50HZ 25HP 190/380V 68/34A SF 1.0
HTR-VOLTS HTR-AMPS MAX. SPACE HEATER TEMP.
NP3554LUA
