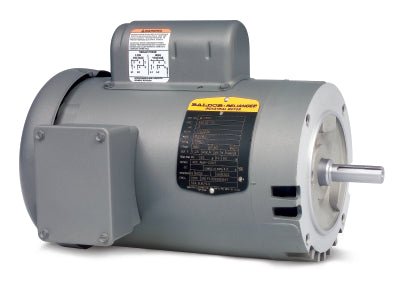

VEL11304 Baldor Motor 1/2HP 1725RPM 56C OPEN 115/230 Volt 1 Phase 34F534R141G1

Replaces model VL1304

Baldor Electric Motor VEL11304 used for fans, blowers, compressors, tools, speed reducers.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 34F534R141G1

Catalog Number    VEL11304
Enclosure    ODP
Frame    56C
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Cap Start, Cap Run
Output @ Frequency    .500 HP @ 60 HZ
Phase    1
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    115.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    CURUSEEV
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    No Mounting
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    2.350 A @ 230.0 V
3.200 A @ 208.0 V
4.700 A @ 115.0 V
Design Code    N
Drip Cover    Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    76.2 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Drip Cover Mounting
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    2.4 a
Insulation Class    B
Inverter Code    Not Inverter
KVA Code    K
Lifting Lugs    No Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    6 @ 18 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3424LC
Mounting Arrangement    F1
Number of Poles    4
Overall Length    12.73 IN
Power Factor    98
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Standard
Rodent Screen    None
RoHS Status    ROHS COMPLIANT
Service Factor    1.25
Shaft Diameter    0.625 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1725 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
