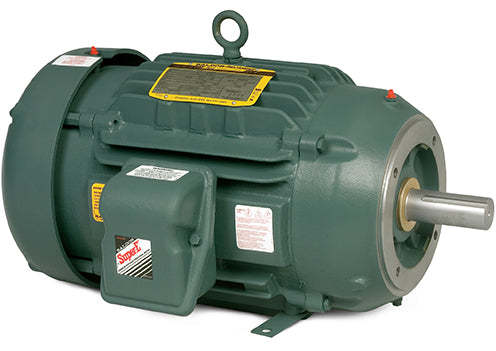

VECP83770T-4 Baldor Motor 7.5HP 1765RPM 213TC TEFC 460 Volt 3 Phase 07M323X814G1

Typical applications include Petro-Chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 07M323X814G1

Catalog Number    VECP83770T-4
Enclosure    TEFC
Frame    213TC
Frame Material    Cast Iron
Frequency    60.00 Hz
Haz Area Class and Group    CLI GP A,B,C,D
Haz Area Division    Division II
Motor Letter Type    Three Phase
Output @ Frequency    7.500 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
Agency Approvals    NEMA_PREMIUM
UR
CSA EEV
CCSA US
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    No Mounting
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Constant Torque Speed Range    1.2
Current @ Voltage    9.500 A @ 460.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    91.7 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Haz Area Temp Code    T3C
Heater Indicator    No Heater
High Voltage Full Load Amps    9.5 a
Insulation Class    F
Inverter Code    Inverter Duty
KVA Code    H
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Max Speed    2700 rpm
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    3 @ 14 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    0740M
Mounting Arrangement    F1
Number of Poles    4
Overall Length    20.32 IN
Power Factor    82
Product Family    Chem Process S/P 32-8 IEEE 841
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Standard
Rodent Screen    None
RoHS Status    ROHS COMPLIANT
Service Factor    1.15
Shaft Diameter    1.375 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1765 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
