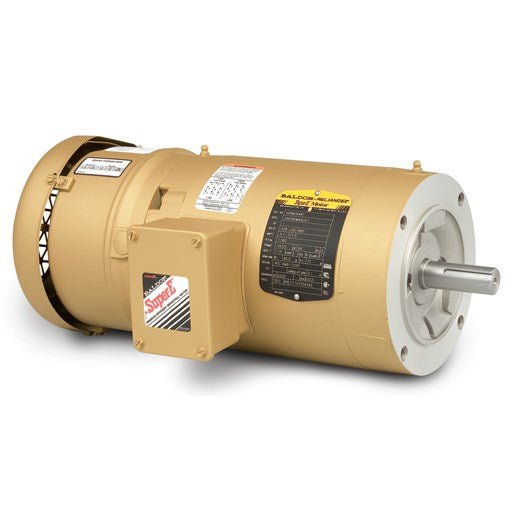

VEBM3558 Baldor Brake Motor 2HP 1725RPM 56C TEFC 208-230/460 Volt 3 Phase 35G259N909G2
Regular price
$1,673.40
Regular price
$2,789.00
Sale
Sale price
$1,673.40
- Description
- Specs
- Nameplate
- Peformance
- Parts
Description
Specification # 35G259M494G1
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.
Specs
Catalog NumberVEBM3558
EnclosureTEFC
Frame56C
Frame MaterialSteel
Frequency60.00 Hz
Haz Area Class and GroupNone
Haz Area DivisionNot Applicable
Motor Letter TypeThree Phase
Output @ Frequency2.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency ApprovalsNEMA_PREMIUM
CURUSEEV Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorNo Mounting Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Brake Torque6.0 lb-ft Current @ Voltage2.800 A @ 460.0 V
5.600 A @ 230.0 V
5.800 A @ 208.0 V Design CodeB Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load86.5 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeBrake Mounting Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps2.8 a Insulation ClassF Inverter CodeInverter Ready KVA CodeK Lifting LugsNo Lifting Lugs Locked Bearing IndicatorLocked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 18 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3528M Mounting ArrangementF1 Number of Poles4 Overall Length17.86 IN Power Factor77 Product FamilyGeneral Purpose Product TypeBRAKE MOTOR Pulley End Bearing TypeBall Pulley Face CodeC-Face Pulley Shaft IndicatorStandard Rodent ScreenNone RoHS StatusROHS COMPLIANT Service Factor1.15 Shaft Diameter0.625 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1760 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
460.0 V @ 60 HZ Agency ApprovalsNEMA_PREMIUM
CURUSEEV Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorNo Mounting Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Brake Torque6.0 lb-ft Current @ Voltage2.800 A @ 460.0 V
5.600 A @ 230.0 V
5.800 A @ 208.0 V Design CodeB Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load86.5 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeBrake Mounting Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps2.8 a Insulation ClassF Inverter CodeInverter Ready KVA CodeK Lifting LugsNo Lifting Lugs Locked Bearing IndicatorLocked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 18 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3528M Mounting ArrangementF1 Number of Poles4 Overall Length17.86 IN Power Factor77 Product FamilyGeneral Purpose Product TypeBRAKE MOTOR Pulley End Bearing TypeBall Pulley Face CodeC-Face Pulley Shaft IndicatorStandard Rodent ScreenNone RoHS StatusROHS COMPLIANT Service Factor1.15 Shaft Diameter0.625 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1760 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
Nameplate
| CAT.NO. | VEBM3558 | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 35G259G073G1 | |||||||||||||||||||||||||||||
| HP | 2 | |||||||||||||||||||||||||||||
| VOLTS | 230/460 | |||||||||||||||||||||||||||||
| AMP | 5.6/2.8 | |||||||||||||||||||||||||||||
| RPM | 1760 | |||||||||||||||||||||||||||||
| FRAME | 56C | HZ | 60 | PH | 3 | |||||||||||||||||||||||||
| SER.F. | 1.15 | CODE | K | DES | B | CL | F | |||||||||||||||||||||||
| NEMA-NOM-EFF | 86.5 | PF | 77 | |||||||||||||||||||||||||||
| RATING | 40C AMB-CONT | |||||||||||||||||||||||||||||
| CC | 010A | |||||||||||||||||||||||||||||
| DE | 6205 | ODE | 6203 | |||||||||||||||||||||||||||
| ENCL | TEFC | SN | ||||||||||||||||||||||||||||
| SFA 6.26/3.13 | ||||||||||||||||||||||||||||||
Peformance
Performance Data at
(Typical performance - Not guaranteed values)
General Characteristics
| Full Load Torque | 5.99 LB-FT | Start Configuration | DOL |
|---|---|---|---|
| No-Load Current | 1.62 Amps | Break-Down Torque | 20.5 LB-FT |
| Line-line Res. @ 25°C. | 9.54 Ohms A Ph / 0 Ohms B Ph | Pull-Up Torque | 13.8 LB-FT |
| Temp. Rise @ Rated Load | 64°C | Locked-Rotor Torque | 15 LB-FT |
| Temp. Rise @ S.F. Load | 77°C | Starting Current | 22.5 Amps |
Load Characteristics
| % of Rated Load | 25 | 50 | 75 | 100 | 125 | 150 | S.F. | |
|---|---|---|---|---|---|---|---|---|
| Power Factor | 35 | 55 | 68 | 76 | 81 | 84 | 80 | |
| Efficiency | 78.3 | 85.3 | 86.9 | 86.5 | 85.3 | 83.6 | 86.1 | |
| Speed (RPM) | 1791 | 1782 | 1771 | 1760 | 1748 | 1734 | 1754 | |
| Line Amperes | 1.71 | 1.97 | 2.34 | 2.82 | 3.36 | 3.97 | 3.13 |
