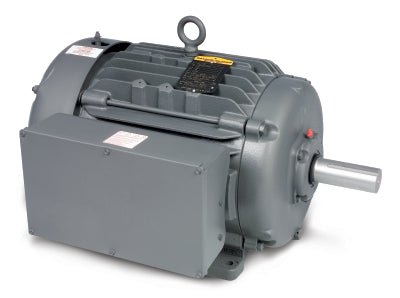

L3912T Baldor Motor 15HP 1760RPM 256T TEFC 208-230 Volt 1 Phase 39T044X905

Specification # 39T044X905

Baldor L3912T motor is a reliable motor used for general purpose including compressors, pumps, fans, farm equipment, conveyors, material handling equipment, machine tools, etc. This motor is designed to last and give you an optimal return on investment.

Baldor L3912T motor features include:

• Low noise vibration dampening base

• Dynamically balanced rotor to increase

bearing life

• Superior switch design provides optimized

torque profiles

• Robust heavy gauge steel design

Catalog Number    L3912T
Enclosure    TEFC
Frame    256T
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Cap Start, Cap Run
Output @ Frequency    15.000 HP @ 60 HZ
Phase    1
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    208.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    CURUS
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    58.000 A @ 230.0 V
65.000 A @ 208.0 V
Design Code    L
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    86.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    58.0 a
Insulation Class    F
Inverter Code    Not Inverter
KVA Code    E
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    2 @ 6 AWG, A PH
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3956LC
Mounting Arrangement    F1
Number of Poles    4
Overall Length    24.56 IN
Power Factor    96
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    Standard
Pulley Shaft Indicator    Standard
Rodent Screen    None
Service Factor    1.00
Shaft Diameter    1.625 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1720 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
