L3510A Baldor Motor 1HP 1725RPM 56/56H TEFC 1 Phase 35J383Y190

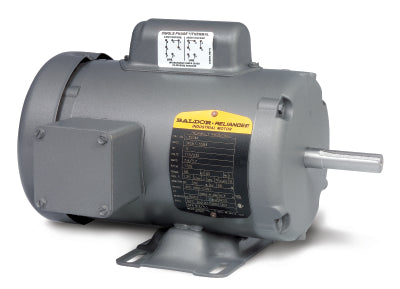

* Image is for reference only

L3510A Baldor Motor 1HP 1725RPM 56/56H TEFC 115/208-230 Volt 1 Phase 35J383Y190

SKU: L3510A
Sale
Description

Specification # 35J383Y190

Baldor Motor L3510A is one of our many general purpose single phase choices.

We offer an extensive line of General Purpose single phase enclosed motors. In applications where only single phase power is utilized, these motors are available from 1/12HP through 15HP in TEFC designs. Standard foot mounted configurations are available, as well as C-Face foot mounted and C-Face footless. These are also offered in 1/4HP through 5HP as Super-E® Premium Efficient motors where energy savings is desired.

SPECS:
Catalog Number L3510A Enclosure TEFC Frame 56H Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Cap Start, Induction Run Output @ Frequency 1.000 HP @ 60 HZ Phase 1 Synchronous Speed @ Frequency 1800 RPM @ 60 HZ Voltage @ Frequency 115.0 V @ 60 HZ 230.0 V @ 60 HZ Agency Approvals C UR US Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 13.000 A @ 115.0 V 6.500 A @ 230.0 V 6.800 A @ 208.0 V Design Code L Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 67.0 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 6.5 a Insulation Class F Inverter Code Not Inverter KVA Code K Lifting Lugs No Lifting Lugs Locked Bearing Indicator No Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 3 @ 16 AWG, A PH Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3524L Mounting Arrangement F1 Number of Poles 4 Overall Length 12.91 IN Power Factor 73 Product Family General Purpose Pulley End Bearing Type Ball Pulley Face Code Standard Pulley Shaft Indicator Standard Rodent Screen None RoHS Status ROHS COMPLIANT Service Factor 1.15 Shaft Diameter 0.625 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator No Slinger Speed 1725 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding Do Not Use Eve-Not Valiid Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 Automatic Thermal Overload Winding Thermal 1 Location SB Winding Thermal 2 None
Nameplate:
CAT.NO. L3510A
SPEC. 35J383G240
HP 1
VOLTS 115/208-230
AMP 12.9/6.7
RPM 1750
FRAME 56H HZ 60 PH 1
SER.F. 1.00 CODE J DES L CL F
NEMA-NOM-EFF 74 PF 68
RATING 40C AMB-CONT
CC
DE 6205 ODE 6203
ENCL TEFC SN
NP1257L
