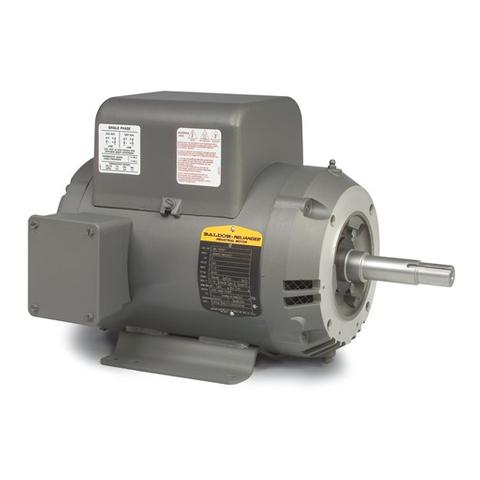

JML1510T Baldor Pump Motor 7.5HP 1725RPM 215JM OPEN 230 Volt 1 Phase 37K266W003G1

This Baldor electric motor applies to many pumping systems where only single phase power is available.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 37K266W885G1

Catalog Number    JML1510T
Enclosure    ODP
Frame    215JM
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Cap Start, Cap Run
Output @ Frequency    7.500 HP @ 60 HZ
Phase    1
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    230.0 V @ 60 HZ
Agency Approvals    CURUS
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    33.000 A @ 230.0 V
35.500 A @ 208.0 V
Design Code    L
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    85.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    33.0 a
Insulation Class    F
Inverter Code    Not Inverter
KVA Code    E
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    2 @ 10 AWG, A PH
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3740LC
Mounting Arrangement    F1
Number of Poles    4
Overall Length    19.31 IN
Power Factor    87
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Tapped & Key
Rodent Screen    Included
Service Factor    1.15
Shaft Diameter    0.875 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    Shaft Slinger
Speed    1750 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
