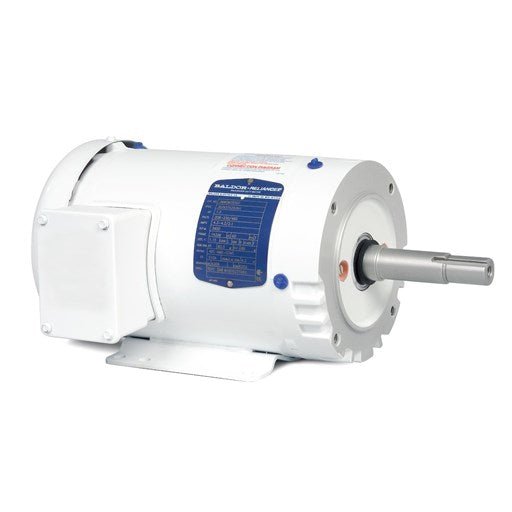

JMEWDM3554T Baldor Motor 143JM TENV 208-230/460V 3 Phase 35Z956G178
SKU:
JMEWDM3554T
Regular price
Regular price
Sale
Sale price
Description
SPECS
Nameplate
Description
Applications for Baldor's washdown pump motors includes swimming pool pumps to medium and high thrust in-line pumps used in water treatment plants. Horse powers range in size from 1/3 through 75 HP.
Baldor Motor Parts, Diagrams and Specs Available!
Specification # 35T937S253H1
SPECS
Catalog Number JMEWDM3554T Enclosure TENV Frame 145JM Frame Material Steel Frequency 60.00 Hz Haz Area Class and Group None Haz Area Division Not Applicable Motor Letter Type Three Phase Output @ Frequency 1.500 HP @ 60 HZ Phase 3 Synchronous Speed @ Frequency 1800 RPM @ 60 HZ Voltage @ Frequency 230.0 V @ 60 HZ 460.0 V @ 60 HZ Agency Approvals NEMA_PREMIUM CURUSEEV Ambient Temperature 40 °C Auxillary Box No Auxillary Box Auxillary Box Lead Termination None Base Indicator Rigid Bearing Grease Type Polyrex EM (-20F +300F) Blower None Current @ Voltage 2.300 A @ 460.0 V 4.600 A @ 230.0 V Design Code B Drip Cover No Drip Cover Duty Rating CONT Efficiency @ 100% Load 86.5 % Electrically Isolated Bearing Not Electrically Isolated Feedback Device NO FEEDBACK Front Face Code Standard Front Shaft Indicator None Heater Indicator No Heater High Voltage Full Load Amps 2.3 a Insulation Class H Inverter Code Inverter Duty KVA Code M Lifting Lugs No Lifting Lugs Locked Bearing Indicator Locked Bearing Motor Lead Exit Ko Box Motor Lead Quantity/Wire Size 9 @ 18 AWG Motor Lead Termination Flying Leads Motor Standards NEMA Motor Type 3530M Mounting Arrangement F1 Number of Poles 4 Overall Length 15.16 IN Power Factor 72 Product Family Wash Down Pulley End Bearing Type Sealed Bearing Pulley Face Code C-Face Pulley Shaft Indicator Tapped & Key Rodent Screen None RoHS Status ROHS COMPLIANT Service Factor 1.00 Shaft Diameter 0.875 IN Shaft Extension Location Pulley End Shaft Ground Indicator No Shaft Grounding Shaft Rotation Reversible Shaft Slinger Indicator Shaft Slinger Speed 1770 rpm Speed Code Single Speed Starting Method Direct on line Thermal Device - Bearing None Thermal Device - Winding None Vibration Sensor Indicator No Vibration Sensor Winding Thermal 1 None Winding Thermal 2 None
Nameplate
CAT.NO.
JMEWDM3554T
SPEC.
35Z956G178
HP
1.5
VOLTS
230/460
AMP
4.6/2.3
RPM
1770
FRAME
145JM
HZ
60
PH
3
SER.F.
1.15
CODE
M
DES
B
CLASS
H
NEMA-NOM-EFF
86.5
PF
72
RATING
40C AMB-CONT
CC
010A
DE
6206
ODE
6203
ENCL
TENV
SN
BLANK
4.4
NP1669L
