IDNM3542 Baldor Motor 3/4HP 1750RPM 56C TENV 3 Phase 35T995P672G1

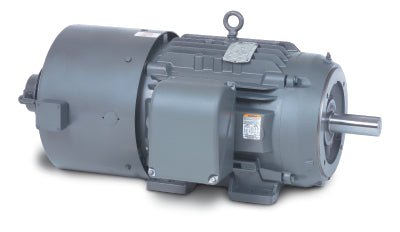

* Image is for reference only

IDNM3542 Baldor Motor 3/4HP 1750RPM 56C TENV 230/460 Volt 3 Phase 35T995P672G1

SKU: IDNM3542
$718.89
$988.00 Sale $718.89
Description

Baldor's Inverter & Vector motors, equipped with a superior insulation system designed to comply with NEMA MG-1 part 31 for inverter power, are designed for a variety of industrial applications where full torque is needed from base speed down to zero speed. Applications include conveyors, pumps, fans, metal processing, compressors, test stands, material handling, packaging equipment, printing presses, and others requiring exact speeds and positioning.

Baldor motor replacement parts, diagrams, and manuals available.

Specification # 35T995P672G1

SPECS

Catalog Number    IDNM3542
Enclosure    TENV
Frame    56C
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    .750 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    CSA
UR
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    2.420 A @ 208.0 V
2.420 A @ 230.0 V
1.210 A @ 460.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    82.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Encoder/Feedback Device
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    1.2 a
Insulation Class    H
Inverter Code    Inverter Duty
KVA Code    K
Lifting Lugs    No Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Max Speed    6000 rpm
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 18 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3514M
Mounting Arrangement    F1
Number of Poles    4
Overall Length    13.84 IN
Power Factor    74
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Standard
Rodent Screen    None
Service Factor    1.00
Shaft Diameter    0.625 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible: Connected Standard
Shaft Slinger Indicator    No Slinger
Speed    1765 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    Normally Closed Thermostat
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None

Nameplate
CAT NO IDNM3542
SPEC. 35T995G069G2
FRAME 56C HP .75 TE
VOLTS 230/460
MAG CUR 1.7/.85 FLA 2.42/1.21
RPM 1765 RPM MAX 6000
HZ 60 PH 3 CLASS H
SER.F. 1.00 DES B SL HZ 1.2
NEMA-NOM-EFF 82.5 WK2 0.101
BLWR V PH HZ A
RATING 40C AMB-CONT
DE BRG 6205 ODE BRG 6203
CC SN
NP1162L
