IDM3582T Baldor Motor 1HP 1150RPM 145TC TEBC 3 Phase 05E535W631G1

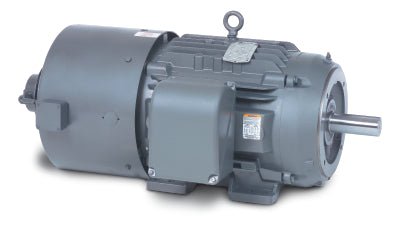

* Image is for reference only

IDM3582T Baldor Motor 1HP 1150RPM 145TC TEBC 230/460 Volt 3 Phase 05E535W631G1

SKU: IDM3582T
$1,875.00
$3,125.00 Sale $1,875.00

Baldor's Inverter & Vector motors, equipped with a superior insulation system designed to comply with NEMA MG-1 part 31 for inverter power, are designed for a variety of industrial applications where full torque is needed from base speed down to zero speed. Applications include conveyors, pumps, fans, metal processing, compressors, test stands, material handling, packaging equipment, printing presses, and others requiring exact speeds and positioning.



Motor replacement parts, diagrams, and manuals available.



Specification # 05E535W631G1







Catalog Number    IDM3582T
Enclosure    TEBC
Frame    145TC
Frame Material    Iron
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    1.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1200 RPM @ 60 HZ
Voltage @ Frequency    230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals    UR
CSA
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    BLOWER
Current @ Voltage    1.500 A @ 460.0 V
3.000 A @ 230.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    82.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Encoder/Feedback Device
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    1.5 a
Insulation Class    H
Inverter Code    Inverter Duty
KVA Code    J
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Max Speed    1800 rpm
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 18 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    0528M
Mounting Arrangement    F1
Number of Poles    6
Overall Length    19.15 IN
Power Factor    67
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    C-Face
Pulley Shaft Indicator    Standard
Rodent Screen    None
RoHS Status    ROHS NON-COMPLIANT
Service Factor    1.00
Shaft Diameter    0.875 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible: Connected Standard
Shaft Slinger Indicator    Shaft Slinger
Speed    1170 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    Normally Closed Thermostat
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None

CAT NO IDM3582T
SPEC. 05E535X571G1
FRAME 145TC HP 1 TE
VOLTS 230/460
MAG CUR 2/1 FLA 3/1.5
RPM 1170 RPM MAX 1800
HZ 60 PH 3 CLASS H
SER.F. 1.00 DES B SL HZ 1.5
NEMA-NOM-EFF 82.5 WK2 0.189
BLWR V 115 PH 1 HZ 60 A .5
RATING 40C AMB-CONT
DE BRG 6205 ODE BRG 6203
CC 010A SN
NP1163L
