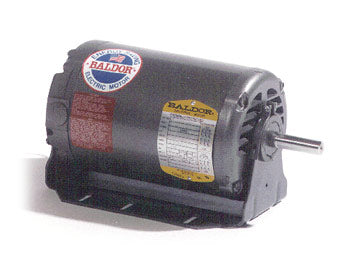

ERM3115 Baldor Motor 1HP 3450RPM 56 OPEN 208-230/460 Volt 3 Phase 34M528-3226G1

Baldor's line of Heating, Ventilation, and Air Conditioning Motors are designed with dynamically balanced rotors for reduced vibration and quiet operation. The motors range in size from 1/4 HP to 100 HP and include heavy duty industrial designs as well as designs for commercial applications. These applications include ventilators, direct drive and belted fans, exhaust fans, unit heaters, air conditioning units, and commercial refrigeration condensers. Also included are motors designed especially for use with variable torque electronic controls that are used to conserve electricity.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 34-1237-282

Catalog Number    ERM3115
Enclosure    ODP
Frame    56
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    1.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    3600 RPM @ 60 HZ
Voltage @ Frequency    230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals    CURUS
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Resilient
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    1.600 A @ 460.0 V
3.200 A @ 230.0 V
3.500 A @ 208.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    77.0 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Resilient Mount
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    1.6 a
Insulation Class    B
Inverter Code    Not Inverter
KVA Code    L
Lifting Lugs    No Lifting Lugs
Locked Bearing Indicator    No Locked Bearing
Motor Lead Exit    Terminal Panel
Motor Lead Quantity/Wire Size    9 @ 18 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3420M
Mounting Arrangement    F1
Number of Poles    2
Overall Length    12.47 IN
Power Factor    82
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    Resilient Mount
Pulley Shaft Indicator    Standard
Rodent Screen    None
RoHS Status    ROHS COMPLIANT
Service Factor    1.25
Shaft Diameter    0.625 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    3450 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
