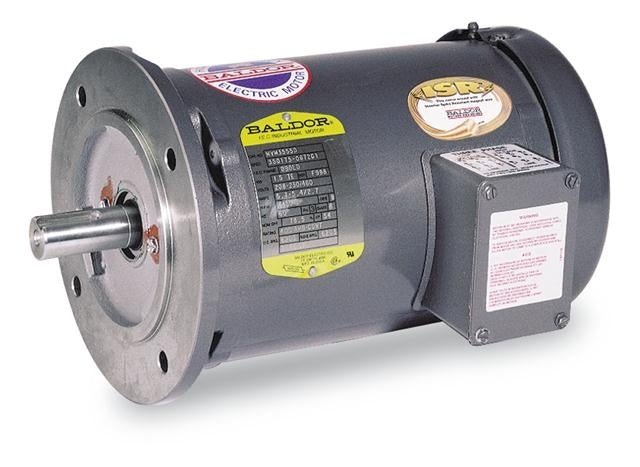

EMVM3613D Baldor Motor 5HP 3600RPM D100LD TEFC 208-230/460 Volt 3 Phase 35Q175Q060G1

Baldor IEC Metric Frame Totally Enclosed Fan Cooled Motors used on Pumps, fans conveyors, machine tools, gear reducers and other applications requiring IEC Metric B14 Face mounting replacements

Baldor Motor Parts, Diagrams and Specs Available!

Catalog Number    EMVM3613D
Enclosure    TEFC
Frame    D100LD
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    3.700 KW @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    3600 RPM @ 60 HZ
Voltage @ Frequency    460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency Approvals    NEMA_PREMIUM
UR
CSA
CE
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    No Mounting
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    12.400 A @ 208.0 V
5.600 A @ 460.0 V
11.200 A @ 230.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    88.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Frame Prefix    D
Front Face Code    Standard
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    5.6 a
Insulation Class    F
Inverter Code    Inverter Ready
IP Rating    NONE
KVA Code    G
Lifting Lugs    No Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 16 AWG
Motor Lead Termination    Flying Leads
Motor Standards    IEC
Motor Type    3634M
Mounting Arrangement    B5
Number of Poles    2
Overall Length    15.77 IN
Power Factor    93
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    D-Flange
Pulley Shaft Indicator    Tapped & Key
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    1.103 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    3450 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
