EMVM3554D Baldor Motor 1.5HP 1725RPM D90SD TEFC 3 Phase 35Q175M493G1

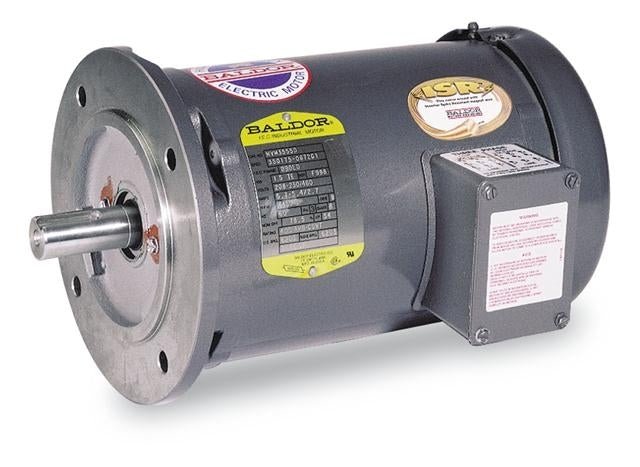

* Image is for reference only

EMVM3554D Baldor Motor 1.5HP 1725RPM D90SD TEFC 208-230/460 Volt 3 Phase 35Q175M493G1

SKU: EMVM3554D
$852.60
$1,421.00 Sale $852.60

Specification # 35Q175Z541H1

EMVM3554D is part of Baldor’s line of IEC frame motors that are available from D63 through D315M, stocked in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Baldor to replace metric motors that have failed on imported machinery. Motor construction meets IP54 and includes motors with B3 base mounting, B5 flange mounting, or B14 face mounting. Stock motors range in size from .18 kW to 132 kW. Typical applications for this product include pumps, fans, conveyors, machine tools, gear reducers and any other jobs that require IEC frames.

Catalog Number    EMVM3554D
Enclosure    TEFC
Frame    D90SD,LD
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    1.100 KW @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1800 RPM @ 60 HZ
Voltage @ Frequency    230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals    CSA
NEMA_PREMIUM
UR
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    No Mounting
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    4.640 A @ 208.0 V
4.600 A @ 230.0 V
2.300 A @ 460.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    86.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Frame Prefix    D
Front Face Code    Standard
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    2.3 a
Insulation Class    F
Inverter Code    Inverter Ready
KVA Code    M
Lifting Lugs    No Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 18 AWG
Motor Lead Termination    Flying Leads
Motor Standards    IEC
Motor Type    3524M
Mounting Arrangement    B5
Number of Poles    4
Overall Length    12.99 IN
Power Factor    72
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    D-Flange
Pulley Shaft Indicator    Tapped & Key
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    0.945 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1770 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None

CAT.NO. EMVM3554D
SPEC. 35Q175L955G1
IEC FRAME D90SD,LD KW 1.1
VOLTS 230/460
AMP 4.6/2.3
RPM 1770 ENCL TEFC
HZ 60 PH 3 CL F
SER.F. 1.15 DES B CODE M
NEMA-NOM-EFF 86.5 I.P. 54
RATING 40C AMB-CONT
CC 010A USABLE AT 208V N/A
DE 6205 ODE 6203
SER. #
SFA 4.68/2.34
NP2672L
