EM4348T Baldor Motor 40HP 880RPM 365T TEFC 3 Phase A36-7200-1044

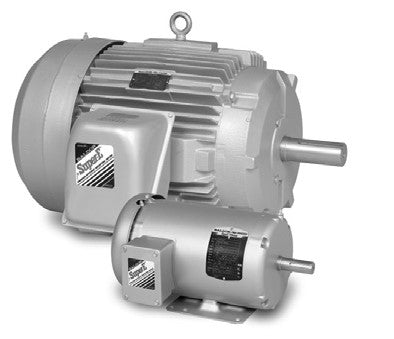

* Image is for reference only

EM4348T Baldor Motor 40HP 880RPM 365T TEFC 230/460 Volt 3 Phase A36-7200-1044

SKU: EM4348T
Sale
Description

Specification # 14C051X120G1

Baldor EM4348T Motor is a reliable and sturdy motor that is used for Fans, Pumps, Blowers, Conveyors, Compressors, Industrial Machines, and other General Purpose Applications.  Baldor motors and parts are built to last and made in the USA.

Baldor EM4348T Motor features include:

  • 60 Hz designs with 50 Hz information on 2,4,6 Pole 1-125 Hp ratings

  • Suitable for Inverter use per NEMA MG1 Part 31.4.4.2

  • Simple F1 to F2 conversion on cast iron frames

  • Designed for longevity with a 3 year warranty on premium efficient Super-E® Motors

SPECS:

Catalog Number    EM4348T
Enclosure    TEFC
Frame    365T
Frame Material    Cast Iron
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    40.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    900 RPM @ 60 HZ
Voltage @ Frequency    230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals    CURUSEEV
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Current @ Voltage    104.000 A @ 230.0 V
111.000 A @ 208.0 V
52.000 A @ 460.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    93.0 %
Feedback Device    NO FEEDBACK
Heater Indicator    No Heater
High Voltage Full Load Amps    52.0 a
Insulation Class    B
Inverter Code    Inverter Ready
IP Rating    NONE
KVA Code    G
Lifting Lugs    Standard Lifting Lugs
Motor Lead Quantity/Wire Size    3 @ 6 AWG
Motor Standards    NEMA
Motor Type    A36062M
Mounting Arrangement    F1
Number of Poles    8
Overall Length    33.47 IN
Power Factor    77
Product Family    General Industrial
Pulley End Bearing Type    Ball
Pulley Face Code    Standard
Service Factor    1.15
Shaft Diameter    2.375 IN
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    890 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None

Nameplate:
SPEC NO. A36-7200-1044 CAT.NO. EM4348T FRAME 365T
HP 40 VOLTS 230/460 PHASE 3 DESIGN B TYPE P
RPM 890 AMPS 104/52 HZ 60 AMB 40 SF 1.15
DRIVE END BEARING 65BC03J30X DUTY CONT INSUL.CLASS F
OPP D.E. BEARING 65BC03J30X ENCL TEFC CODE G
SER.NO. POWER FACTOR 77 NEMA-NOM-EFFICIENCY 93
MAX CORR KVAR 15 GUARANTEED EFFICIENCY 91.7
NEMA NOM/CSA QUOTED EFF
MOTOR WEIGHT 875
NP2349L
