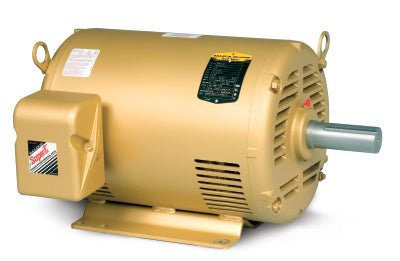

* Image is for reference only

EM3220T Baldor Motor 1.5HP 900RPM 184T OPSB 230/460 Volt 3 Phase 36B001R623G1

SKU: EM3220T
Sale
Description

Specification # 36B001R623G1

Enjoy easy installation, low maintenance, and energy efficiency with Baldor general purpose motors.  These rolled steel, versatile AC machines provide high torque and durability for a wide range of applications, including compressors, pumps, fans, conveyors, and machinery.

Square One Electric is where to buy Baldor motors online. Each motor comes new from the factory with a manufacturer's warranty.

Baldor motors are designed to last with a superior cooling system and solid rolled steel construction. Enjoy top quality construction and quiet operation with Baldor Electric products.

 Motor specs include:

  • Inverter duty

  • Dynamic balanced rotor

  • 60 Hz design

  • Optimized airflow design

Specs
Catalog NumberEM3220T EnclosureODP Frame184T Frame MaterialSteel Frequency60.00 Hz Haz Area Class and GroupNone Haz Area DivisionNot Applicable Motor Letter TypeThree Phase Output @ Frequency1.500 HP @ 60 HZ Phase3 Synchronous Speed @ Frequency900 RPM @ 60 HZ Voltage @ Frequency230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency ApprovalsCURUS
CURUSEEV
NEMA_PREMIUM Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage6.000 A @ 230.0 V
6.000 A @ 208.0 V
3.000 A @ 460.0 V Design CodeB Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load77.0 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeStandard Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps3.0 a Insulation ClassF Inverter CodeInverter Ready KVA CodeK Lifting LugsNo Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 16 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type3642M Mounting ArrangementF1 Number of Poles8 Overall Length16.50 IN Power Factor60 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone RoHS StatusROHS COMPLIANT Service Factor1.15 Shaft Diameter1.125 IN Shaft Extension LocationPulley End Shaft Ground IndicatorNo Shaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed855 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
Nameplate
CAT.NO. EM3220T
SPEC. 36B001R623G1
HP 1.5
VOLTS 230/460
AMP 6/3
RPM 855
FRAME 184T HZ 60 PH 3
SER.F. 1.15 CODE K DES B CL F
NEMA-NOM-EFF 77 PF 60
RATING 40C AMB-CONT
CC 010A
DE 6206 ODE 6205
ENCL OPEN SN
NP2116L
