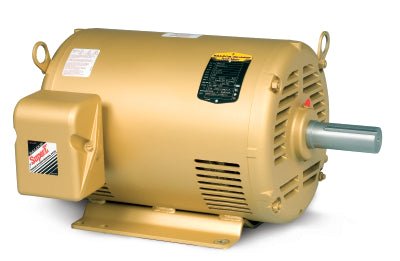

EM3116-57 Baldor Motor 1HP 1440RPM 56 OPSB 208-230/460 Volt 3 Phase 35B011Z674G1

EM3116-57 Baldor Electric Premium Efficient Motor 1HP 1765RPM 3PH 60HZ 143T 3524M OPSB

Baldor's Super-E Motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction. All three phase motors are Inverter Ready per NEMA Standard MG1, Part 31.4.4.2. This means the motors in 230 and 460 volts meet NEMA's corona inception voltage requirements, under this Standard, and can withstand peak voltages of up to 1600 volts. Motors having premium efficiency are also available in single phase designs.

Baldor Motor Parts, Diagrams and Specs Available!

Specification # 35B011Z674G1

Catalog Number    EM3116-57
Enclosure    ODP
Frame    56
Frame Material    Steel
Frequency    50.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    1.000 HP @ 50 HZ
Phase    3
Synchronous Speed @ Frequency    1500 RPM @ 50 HZ
Voltage @ Frequency    230.0 V @ 50 HZ
400.0 V @ 50 HZ
Agency Approvals    CE
CURUS
UKCA
WEEE
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    3.450 A @ 230.0 V
2.000 A @ 400.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    82.5 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    2.0 a
Insulation Class    F
Inverter Code    Not Inverter
KVA Code    N
Lifting Lugs    No Lifting Lugs
Locked Bearing Indicator    No Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    6 @ 18 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3520M
Mounting Arrangement    F1
Number of Poles    4
Overall Length    11.07 IN
Power Factor    65
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    Standard
Pulley Shaft Indicator    Standard
Rodent Screen    None
RoHS Status    ROHS COMPLIANT
Service Factor    1.15
Shaft Diameter    0.625 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1470 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
