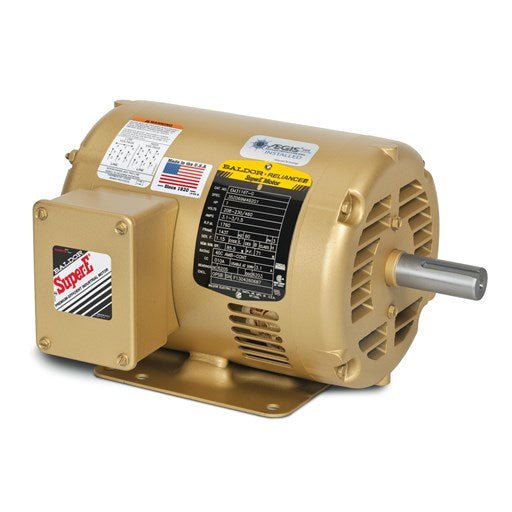

EM31111 Baldor 3/4HP 3450RPM 56 OPEN 208-230/460 Volt 3 Phase 34B061W719G1

Specification # 34B061W719G1

General purpose industrial motor can be used for many applications, including machinery, fans, pumps, and blowers.

Catalog Number    EM31111
Enclosure    ODP
Frame    56
Frame Material    Steel
Frequency    60.00 Hz
Haz Area Class and Group    None
Haz Area Division    Not Applicable
Motor Letter Type    Three Phase
Output @ Frequency    .750 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    3600 RPM @ 60 HZ
Voltage @ Frequency    230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals    CURUSEEV
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    1.200 A @ 460.0 V
2.400 A @ 230.0 V
2.700 A @ 208.0 V
Design Code    B
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    76.8 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    1.2 a
Insulation Class    F
Inverter Code    Not Inverter
KVA Code    L
Lifting Lugs    No Lifting Lugs
Locked Bearing Indicator    No Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 18 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    3416M
Mounting Arrangement    F1
Number of Poles    2
Overall Length    10.25 IN
Power Factor    80
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    Standard
Pulley Shaft Indicator    Standard
Rodent Screen    None
RoHS Status    ROHS COMPLIANT
Service Factor    1.25
Shaft Diameter    0.625 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    3450 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
