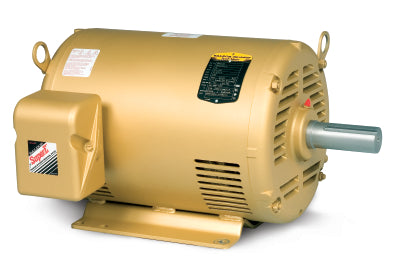

EM2540T Baldor Motor 40HP 1185RPM 364T OPEN 230/460 Volt 3 Phase 42H047W920G1

THIS ITEM REPLACES M2540T

Baldor Premium Efficient Open Motors used for Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives

Baldor Motor Parts, Diagrams and Specs Available!

Specification # P36G3402

Catalog Number    EM2540T
Enclosure    OPSB
Frame    364T
Frame Material    Steel
Frequency    60.00 Hz
Motor Letter Type    Three Phase
Output @ Frequency    40.000 HP @ 60 HZ
Phase    3
Synchronous Speed @ Frequency    1200 RPM @ 60 HZ
Voltage @ Frequency    230.0 V @ 60 HZ
460.0 V @ 60 HZ
Agency Approvals    NEMA PREMIUM
CURUSEEV
Ambient Temperature    40 °C
Auxillary Box    No Auxillary Box
Auxillary Box Lead Termination    None
Base Indicator    Rigid
Bearing Grease Type    Polyrex EM (-20F +300F)
Blower    None
Current @ Voltage    104.000 A @ 230.0 V
110.000 A @ 208.0 V
51.000 A @ 460.0 V
Design Code    A
Drip Cover    No Drip Cover
Duty Rating    CONT
Efficiency @ 100% Load    94.1 %
Electrically Isolated Bearing    Not Electrically Isolated
Feedback Device    NO FEEDBACK
Front Face Code    Standard
Front Shaft Indicator    None
Heater Indicator    No Heater
High Voltage Full Load Amps    51.0 a
Insulation Class    F
Inverter Code    Not Inverter
KVA Code    H
Lifting Lugs    Standard Lifting Lugs
Locked Bearing Indicator    Locked Bearing
Motor Lead Exit    Ko Box
Motor Lead Quantity/Wire Size    9 @ 8 AWG
Motor Lead Termination    Flying Leads
Motor Standards    NEMA
Motor Type    4278M
Mounting Arrangement    F1
Number of Poles    6
Overall Length    30.69 IN
Power Factor    79
Product Family    General Purpose
Pulley End Bearing Type    Ball
Pulley Face Code    Standard
Pulley Shaft Indicator    Standard
Rodent Screen    None
Service Factor    1.15
Shaft Diameter    2.375 IN
Shaft Extension Location    Pulley End
Shaft Ground Indicator    No Shaft Grounding
Shaft Rotation    Reversible
Shaft Slinger Indicator    No Slinger
Speed    1180 rpm
Speed Code    Single Speed
Starting Method    Direct on line
Thermal Device - Bearing    None
Thermal Device - Winding    None
Vibration Sensor Indicator    No Vibration Sensor
Winding Thermal 1    None
Winding Thermal 2    None
