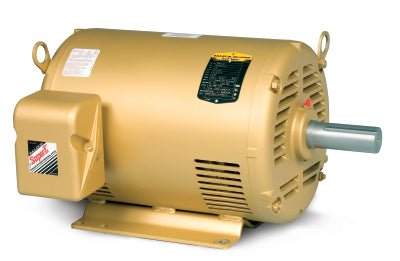

EM2535T-G Baldor Motor 30HP 1770RPM 286T OPSB 230/460 Volt 3 Phase 40E246X339G1
Regular price
Regular price
Sale
Sale price
- Description
- Specs
- Nameplate
- Performance
- Parts
Description
Specification # 40G048W942 / THIS ITEM REPLACES M2535T
Baldor Premium Efficient Motors used for Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives
Specs
Catalog NumberEM2535T-G
EnclosureODP
Frame286T
Frame MaterialSteel
Frequency60.00 Hz
Motor Letter TypeThree Phase
Output @ Frequency30.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency230.0 V @ 60 HZ
460.0 V @ 60 HZ Agency ApprovalsNEMA_PREMIUM
CURUSEEV Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage37.000 A @ 460.0 V
74.000 A @ 230.0 V
77.000 A @ 208.0 V Design CodeA Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load94.1 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeStandard Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps37.0 a Insulation ClassH Inverter CodeInverter Ready KVA CodeH Lifting LugsStandard Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 8 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type4060M Mounting ArrangementF1 Number of Poles4 Overall Length26.06 IN Power Factor80 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone Service Factor1.15 Shaft Diameter1.875 IN Shaft Extension LocationPulley End Shaft Ground IndicatorShaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1775 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
460.0 V @ 60 HZ Agency ApprovalsNEMA_PREMIUM
CURUSEEV Ambient Temperature40 °C Auxillary BoxNo Auxillary Box Auxillary Box Lead TerminationNone Base IndicatorRigid Bearing Grease TypePolyrex EM (-20F +300F) BlowerNone Current @ Voltage37.000 A @ 460.0 V
74.000 A @ 230.0 V
77.000 A @ 208.0 V Design CodeA Drip CoverNo Drip Cover Duty RatingCONT Efficiency @ 100% Load94.1 % Electrically Isolated BearingNot Electrically Isolated Feedback DeviceNO FEEDBACK Front Face CodeStandard Front Shaft IndicatorNone Heater IndicatorNo Heater High Voltage Full Load Amps37.0 a Insulation ClassH Inverter CodeInverter Ready KVA CodeH Lifting LugsStandard Lifting Lugs Locked Bearing IndicatorNo Locked Bearing Motor Lead ExitKo Box Motor Lead Quantity/Wire Size9 @ 8 AWG Motor Lead TerminationFlying Leads Motor StandardsNEMA Motor Type4060M Mounting ArrangementF1 Number of Poles4 Overall Length26.06 IN Power Factor80 Product FamilyGeneral Purpose Pulley End Bearing TypeBall Pulley Face CodeStandard Pulley Shaft IndicatorStandard Rodent ScreenNone Service Factor1.15 Shaft Diameter1.875 IN Shaft Extension LocationPulley End Shaft Ground IndicatorShaft Grounding Shaft RotationReversible Shaft Slinger IndicatorNo Slinger Speed1775 rpm Speed CodeSingle Speed Starting MethodDirect on line Thermal Device - BearingNone Thermal Device - WindingNone Vibration Sensor IndicatorNo Vibration Sensor Winding Thermal 1None Winding Thermal 2None
Nameplate
| CAT.NO. | EM2535T-G | P/N | ENCL | OPSB | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 40E246X339G1 | CC | 010A | FRAME | 286T | SER.NO. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HP | 30 | CLASS | H | HZ | 60 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RPM | 1775 | PH | 3 | DES | A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VOLTS | 230/460 | CODE | H | ODE BRG | 6309 | DE BRG | 6311 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AMPS | 74/37 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| RATING | 40C AMB-CONT | NEMA-NOM-EFF | 94.1 | GREASE | POLYREX EM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PF | 80 | SER.F. | 1.15 | CT30-60(2:1) VT3-60(20:1) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| USABLE AT | 50HZ 30HP 190/380V 86/43A | SF1.0 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| HTR-VOLTS | HTR-AMPS | MAX. SPACE HEATER TEMP. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance
Performance Data at
(Typical performance - Not guaranteed values)
General Characteristics
| Full Load Torque | 88.8 LB-FT | Start Configuration | DOL |
|---|---|---|---|
| No-Load Current | 15.4 Amps | Break-Down Torque | 280 LB-FT |
| Line-line Res. @ 25°C. | 0.22043 Ohms A Ph / 0 Ohms B Ph | Pull-Up Torque | 130 LB-FT |
| Temp. Rise @ Rated Load | 29°C | Locked-Rotor Torque | 161 LB-FT |
| Temp. Rise @ S.F. Load | 35°C | Starting Current | 252 Amps |
Load Characteristics
| % of Rated Load | 25 | 50 | 75 | 100 | 125 | 150 | S.F. | |
|---|---|---|---|---|---|---|---|---|
| Power Factor | 44 | 67 | 77 | 82 | 85 | 85 | 84 | |
| Efficiency | 90.5 | 93.8 | 94.4 | 94.3 | 93.9 | 93.2 | 94.1 | |
| Speed (RPM) | 1793.6 | 1788.1 | 1782.5 | 1776.9 | 1770.4 | 1763.1 | 1773 | |
| Line Amperes | 17.7 | 22.5 | 29 | 36.3 | 44.3 | 53 | 41.1 |
Parts
| Product Number | Description | Quantity |
|---|---|---|
| SA321228 | SA 40E246X339G1 | 1 EA |
| RA308980 | RA 40E246X339G1 | 1 EA |
| HA6361A01 | LIFTING LUG FOR 37, 39 & 40 FRAME ZINC | 2 EA |
| HA6017 | CAST ADAPTER, 40,42 KOBX | 1 EA |
| 19XW3118A12 | .31-18 X .75 HEX WASHER HEAD TAPTITE II | 2 EA |
| WD1000B25 | GND LUG, BURNDY L125HP OR T&B L125HP-BB | 1 EA |
| 19XW3118G08 | .31-18X.50,HEX WSHR HD,TAPTITE 2,GREEN | 1 EA |
| HW1001A31 | LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I | 2 EA |
| 10CB3000SP | KOBX, CAST W/2.00 LEAD HOLE | 1 EA |
| 19XW3118A12 | .31-18 X .75 HEX WASHER HEAD TAPTITE II | 4 EA |
| 40EP3200A02 | STD FREP OPEN 309 BRG | 1 EA |
| HW5100A11 | W3917-042 WVY WSHR (WB) | 1 EA |
| 40EP3200B01 | STD PUEP OPEN 311 LOCKED BRG W/AIR DEFLE | 1 EA |
| 10XN3118K40 | 5/16-18 X 2.25" HEX HD, GRADE 5 | 4 EA |
| HW1001A31 | LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I | 4 EA |
| XY3816A12 | 3/8-16 FINISHED NUT W/SERRATIONS | 8 EA |
| 10CB3500SP | CONDUIT BOX LID, CAST | 1 EA |
| 51XW2520A12 | .25-20 X .75, TAPTITE II, HEX WSHR SLTD | 4 EA |
| HW2501H28 | KEY, 1/2 SQ X 3.250 | 1 EA |
| HW4500A03 | GREASE FITTING, .125 NPT 1610(ALEMITE) 8 | 1 EA |
| HW4500A20 | 1/8NPT SL PIPE PLUG | 1 EA |
| HA4051A00 | PLASTIC CAP FOR GREASE FITTING | 1 EA |
| MG1050Y01 | CELEROL BALDOR GOLD *** NLA IN 5 GALLON | 0.07 GA |
| MJ1000A02 | GREASE, POLYREX EM EXXON | 0.05 LB |
| HW4500A03 | GREASE FITTING, .125 NPT 1610(ALEMITE) 8 | 1 EA |
| HW4500A20 | 1/8NPT SL PIPE PLUG | 1 EA |
| HA4051A00 | PLASTIC CAP FOR GREASE FITTING | 1 EA |
| 85XU0407S04 | 4X1/4 U DRIVE PIN STAINLESS | 4 EA |
| 40AD2002A01 | LEXAN BAFFLE 40 FR OPEN | 1 EA |
| HA3159A08 | THRUBOLT- .38-16 X 20.00 LONG STUD | 4 EA |
| 40AD2002A01 | LEXAN BAFFLE 40 FR OPEN | 1 EA |
| LB1624 | COMBINED WARNING LABEL, ISO/ANSI PICTOGR | 1 EA |
| LC0005 | CONN.DIA.,TY M,9-LD,DUAL VOLT,REVERSING | 1 EA |
| NP3554LUA | SS SUPER-E VPWM INV READY,CURUS-EEV,PREM | 1 EA |
| 40PA1000 | PACKAGING GROUP | 1 EA |
| MN416A01 | TAG-INSTAL-MAINT no wire (2500bx)4/22 | 1 EA |
| LB1350 | BAR CODE LABEL FOR YORK | 1 EA |
